[14% off $362.00 ] NITRA DISCRETE INPUT MODULE, 8-POINT, 12
$311.32USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

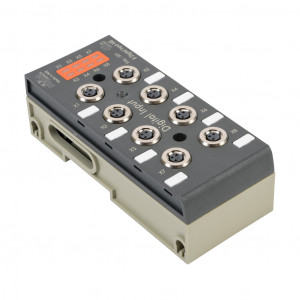

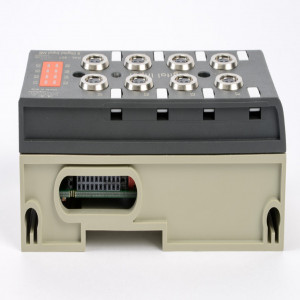

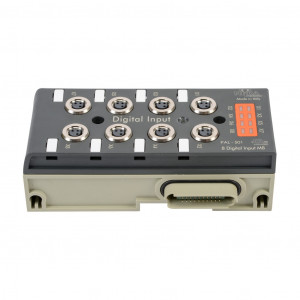

NITRA DISCRETE INPUT MODULE, 8-POINT, 12-24 VDC, PNP/NPN, 1 COMMON(S), 8 POINT(S) PER COMMON, IP65. FOR USE WITH PAL SERIES. MOUNTING HARDWARE INCLUDED. REQUIRES PAL-EIP BUS COUPLER.
Modelo: PAL-S01
Jueves, 28 de Noviembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 02 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$311.32USD
Atributos del producto
| Brand | NITRA |
|---|---|
| Item | Input module |
| I/O Module Type | Discrete |
| Connector Type | 3-pin M8 |
| Number of Input Points | 8 |
| Nominal Input Voltage | 12-24 VDC |
| Discrete Input Type | PNP/NPN |
|---|---|
| Fast Response | No |
| Number of Non-Isolated Input Commons | 1 |
| Number of Points per Common | 8 |
| IP Rating | IP65 |
| For Use With | PAL series |
| Includes | Mounting hardware |
| Requires | PAL-EIP bus coupler |
| Programming Software | NITRA PAL configuration software v1.0 or later |
| Additional Information | All ports require connectors or caps to maintain IP rating |
