[2% off $99.00 ] PRODUCTIVITYOPEN MKR-PINS EXTENSION SHIE
$97.02USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA
PRODUCTIVITYOPEN MKR-PINS EXTENSION SHIELD, 0-3.3 VDC. FOR USE WITH PRODUCTIVITYOPEN P1AM-100 CPU. REQUIRES P2-RTB OR P2-RTB-1 REMOVABLE TERMINAL BLOCK OR ZIPLINK PRE-WIRED CABLES. SEE PRODUCT INSERT FOR COMPLETE LIST OF I/O CONFIGURATION OPTIONS.
Fecha Entrega:
Precio (no incluye IVA):
$97.02USD
Atributos del producto
| Brand | ProductivityOpen |
|---|---|
| Item | MKR-pins extension shield |
| Number of Analog Input Channels | Up to 4 |
| Analog Input Signal Type | Voltage |
| Input Resolution | 8-bit, 10-bit and 12-bit |
| Input Voltage Signal Range | 0-3.3 VDC |
| Number of Analog Output Channels | Up to 1 |
|---|---|
| Analog Output Signal Type | Voltage |
| Output Resolution | 10-bit |
| Output Voltage Signal Range | 0-3.3 VDC |
| Number of General Purpose Discrete I/O Points | Up to 16 |
| Discrete Input Type | Sinking/sourcing |
| Load Current | 7 mA/point |
| Number Of Commons | 1 |
| Communication Port and Connection Type(s) | Up to (1) UART (2-pin terminal) and up to (1) I2C (2-pin terminal) port(s) |
| Number of High-Speed Capable Output Points | 7 |
| Output Pulse Mode(s) | Up to (7) PWM pulse width modulation outputs |
| For Use With | ProductivityOpen P1AM-100 CPU |
| Requires | P2-RTB or P2-RTB-1 removable terminal block or ZIPLink pre-wired cables |
| Programming Software | Arduino software (IDE) and ProductivityBlocks |
| Additional Information | See product insert for complete list of I/O configuration options |
¿Porqué SDI Industrial Store?
Compra rápido, seguro y sencillo
La mejor calidad de servicio
Garantía directa con nosotros
Envíos Gratis en compras mayores a $ 650.00
Productos recomendados
-
PRODUCTIVITYOPEN ARDUINO-COMPATIBLE CPU,
PRODUCTIVITYOPEN ARDUINO-COMPATIBLE CPU, MICROSD CARD SLOT, (1) MICROB-USB PORT(S), EXTERNAL 24 VDC REQUIRED.
PRODUCTIVITYOPEN ARDUINO-COMPATIBLE CPU, MICROSD CARD SLOT, (1) MICROB-USB PORT(S), EXTERNAL 24 VDC REQUIRED.Precio no incluye IVAP1AM-100
$112.00 USD
-

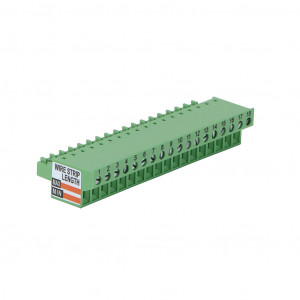

PRODUCTIVITY2000 TERMINAL BLOCK, 18-PIN
PRODUCTIVITY2000 TERMINAL BLOCK, 18-PIN SCREW TYPE. FOR USE WITH PRODUCTIVITY1000 AND PRODUCTIVITY2000 I/O MODULES.
PRODUCTIVITY2000 TERMINAL BLOCK, 18-PIN SCREW TYPE. FOR USE WITH PRODUCTIVITY1000 AND PRODUCTIVITY2000 I/O MODULES.Precio no incluye IVAP2-RTB
$13.00 USD
-

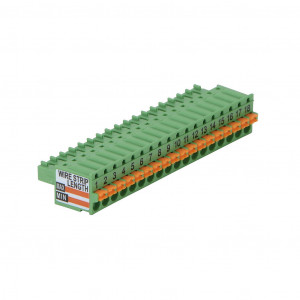

PRODUCTIVITY2000 TERMINAL BLOCK, 18-PIN
