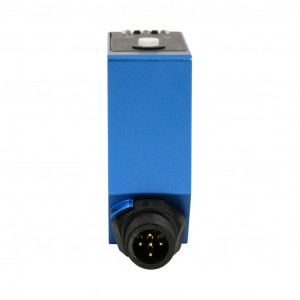

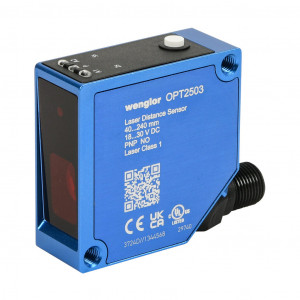

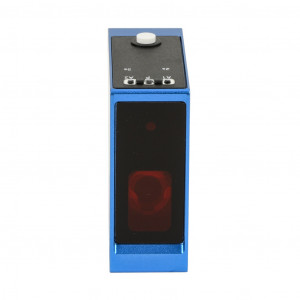

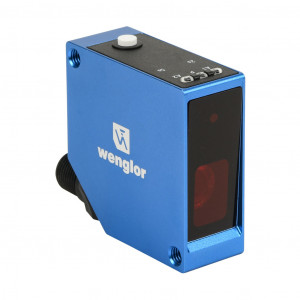

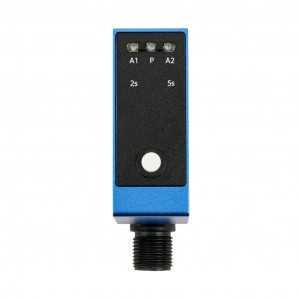

WENGLOR PHOTOELECTRIC SENSOR, SQUARE, DI
$980.00USD
Precio no incluye IVAWENGLOR PHOTOELECTRIC SENSOR, SQUARE, DIFFUSE, CLASS 1 RED LASER, 40-240MM SENSING DISTANCE, (2) PNP, TEACH-IN BUTTON, 650 HZ SWITCHING FREQUENCY, ALUMINUM HOUSING, 5-PIN M12 QUICK-DISCONNECT.
Marca: WENGLORModelo: OPT2503
Este producto incluye
Envío gratis
* Aplican restricciones
Entrega estimada:
Lunes, 21 De Julio De 2025
* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$980.00USD
Atributos del producto
| Brand | Wenglor |
|---|---|
| Item | Photoelectric sensor |
| Shape | Square |
| Housing Size | 50 x 50 x 20mm |
| IP Rating | IP67 |
| Housing Material | Aluminum |
| Sensing Method | Diffuse |
|---|---|
| Sensing Technology | Triangulation |
| Sensor Type | Distance measuring |
| Operating Voltage | 18-30 VDC |
| Number of Wires | 5 |
| Switching Output | (2) PNP |
| Sensing Distance | 40-240mm |
| Sensitivity | Teach-in button |
| Switching Frequency | 650 Hz |
| Light Emission (NP) | Class 1 red laser |
| IO-Link Compatible | Yes |
| User Interface | Pushbutton user interface |
| Connection | 5-pin M12 quick-disconnect |
| Communication Port and Connection Type(s) | (1) 5-pin M12 A-coded (IO-Link) port(s) |
| Port Protocol(s) | IO-Link Class A Device |
| Port Speed(s) | IO-Link COM3 |
| IO-Link Version | IO-Link v1.1 |
| Standard I/O Mode Supported | Yes |
| Includes | Mounting hardware |
| Additional Information | Purchase cable separately |
