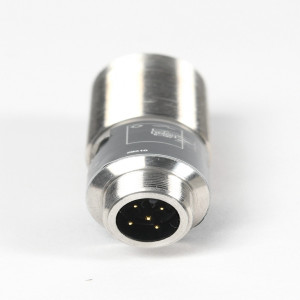

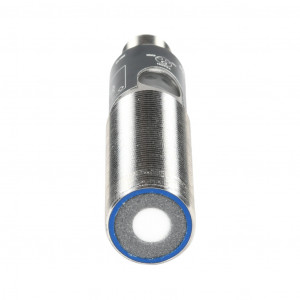

WENGLOR ULTRASONIC PROXIMITY SENSOR, TUB
$191.00USD
Precio no incluye IVAWENGLOR ULTRASONIC PROXIMITY SENSOR, TUB
Marca: WENGLORModelo: OPT2210
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Miércoles, 11 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$191.00USD
Atributos del producto
| Brand | Wenglor |
|---|---|
| Item | Proximity sensor |
| Sensor Type | Ultrasonic |
| Application | Standard industrial and analog output |
| Shape | Tubular |
| Housing Size | 18mm diameter x 86mm body |
| Housing Material | Stainless steel |
|---|---|
| Barrel Type | Threaded |
| Sensing Method | Diffuse |
| Adjustable | Yes |
| Number of Wires | 5 |
| Switching Output | PNP |
| Analog Output | 0-10 VDC |
| Operation Mode | N.O. |
| Sensing Distance | 50-400mm |
| IO-Link Compatible | Yes |
| Switching Frequency | 20 Hz |
| Operating Voltage | 18-30 VDC |
| Operating Temperature | -30 to 60 deg C |
| Weld Field Immune | No |
| Chip Immune | No |
| IP Rating | IP67 |
| Connection | 5-pin M12 quick-disconnect |
| Communication Port and Connection Type(s) | (1) 5-pin M12 A-coded (IO-Link) port(s) |
| Port Protocol(s) | IO-Link Class A Device |
| Port Speed(s) | IO-Link COM2 |
| IO-Link Version | IO-Link v1.0 |
| Standard I/O Mode Supported | Yes |
| Includes | Mounting hardware |
