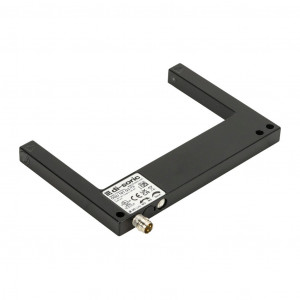

DI-SORIC PHOTOELECTRIC FORK SENSOR, U-FR
$288.00USD
Precio no incluye IVADI-SORIC PHOTOELECTRIC FORK SENSOR, U-FRAME, DIE-CAST ZINC HOUSING, THROUGH-BEAM, VISIBLE RED LIGHT EMISSION, 0-100MM SENSING DISTANCE, 10-30 VDC OPERATING VOLTAGE, SELECTABLE LIGHT-ON/DARK-ON, PUSH-PULL NPN OR PNP, 3-WIRE, 3-PIN M8 QUICK-DISCONNECT.
Marca: DI-SORICModelo: OGU101G3-T3
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Miércoles, 11 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$288.00USD
Atributos del producto
| Brand | di-soric |
|---|---|
| Item | Photoelectric fork sensor |
| Shape | U-frame |
| Housing Size | 120 x 80 x 10mm |
| IP Rating | IP67 |
| Housing Material | Die-cast zinc |
| Sensing Method | Through-beam |
|---|---|
| Operating Voltage | 10-30 VDC |
| Number of Wires | 3 |
| Switching Output | Push-pull NPN or PNP |
| Sensing Distance | 0-100mm |
| Sensitivity | Potentiometer |
| Operation Mode | Selectable light-on/dark-on |
| Switching Frequency | 8 kHz |
| Light emission | Visible red |
| IO-Link Compatible | Yes |
| Connection | 3-pin M8 quick-disconnect |
| Communication Port and Connection Type(s) | (1) 3-pin M8 (IO-Link) port(s) |
| Port Protocol(s) | IO-Link Class A Device |
| Port Speed(s) | IO-Link COM2 |
| IO-Link Version | IO-Link v1.1 |
| Standard I/O Mode Supported | Yes |
| Additional Information | Purchase cable separately |
