[5% off $81.00 ] PROSENSE TEMPERATURE SENSOR, 10K TYPE 3
$76.95USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

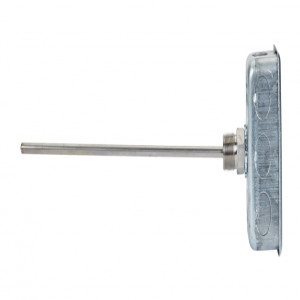

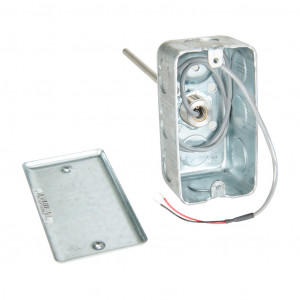

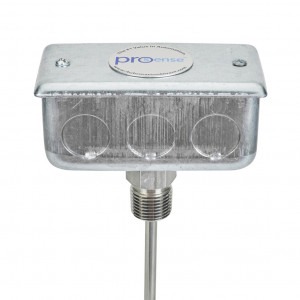

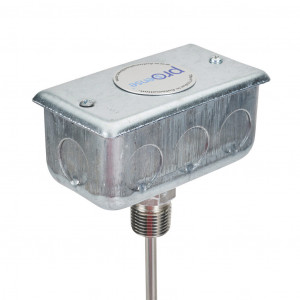

PROSENSE TEMPERATURE SENSOR, 10K TYPE 3 THERMISTOR, JUNCTION BOX SPRING-LOADED PROBE, 12IN INSERTION LENGTH, 1/4IN PROBE DIAMETER, STAINLESS STEEL SHEATH, 1/2IN MALE NPT PROCESS CONNECTION, 2 X 4IN JUNCTION BOX WITH 2FT 24 AWG WIRE LEADS.
Modelo: NTC10K3-JB12-03
Entrega estimada:
Martes, 22 De Abril De 2025
* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$76.95USD
Atributos del producto
| Brand | ProSense |
|---|---|
| Item | Temperature sensor |
| Sensor Element | 10K Type 3 thermistor |
| Sensor Type | Junction box spring-loaded probe |
| Accuracy | +/-0.36 deg F (0.2 deg C) |
| Insertion Length | 12in |
| Probe Diameter | 1/4in |
|---|---|
| Sheath Material | Stainless steel |
| Process Connection | 1/2in male NPT |
| Electrical Connection | 2 x 4in junction box with 2ft 24 AWG wire leads |
| Conductor Insulation Material | PVC |
| Temperature Sensing Range | -40 to 257 deg F |
| For Use With | Thermowells |
