[2% off $574.00 ] IRONHORSE MTS SERIES PREMIUM EFFICIENCY
$562.52USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

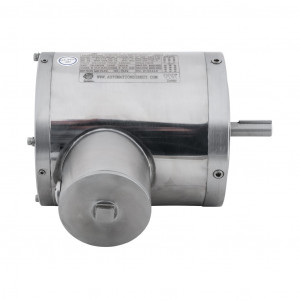

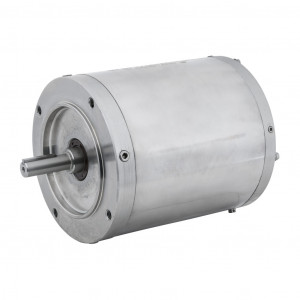

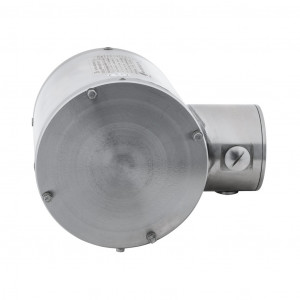

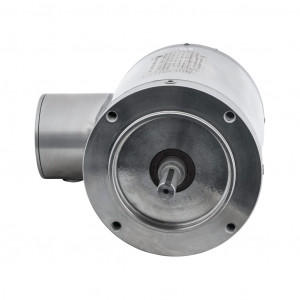

IRONHORSE MTS SERIES PREMIUM EFFICIENCY AC INDUCTION MOTOR, WASHDOWN, INVERTER RATED AND HAZARDOUS LOCATION, 1/2HP, 3-PHASE, 208-230/460 VAC, 1800RPM, TENV, 56C FRAME, 304 STAINLESS STEEL, C-FACE ONLY MOUNT.
Fecha Entrega:
Precio (no incluye IVA):
$562.52USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Motor |
| Series | MTS |
| Efficiency Group | Premium efficiency |
| Efficiency | 78.5 |
| Voltage Type | AC |
| Motor Type | Induction |
|---|---|
| Motor Application | Washdown, inverter rated and hazardous location |
| Horsepower Rating | 1/2hp |
| Number of Phases | 3 |
| Voltage Rating | 208-230/460 VAC |
| Synchronous Speed | 1800rpm |
| Nameplate RPM | 1745rpm |
| Overload Type | None |
| Enclosure Type | TENV |
| Shaft Type | Round with square key |
| Shaft Diameter | 5/8in |
| Shaft Material | 304 stainless steel |
| Motor Frame | 56C |
| Frame Material | 304 stainless steel |
| Electrically Reversible | Yes |
| Insulation Class | Class F |
| IP Rating | IP69K |
| Constant Torque Rating | 10 |
| Variable Torque Rating | 20 |
| Service Factor | 1.15 |
| NEMA Design | Design B |
| Junction Box Orientation | F1 |
| Mounting | C-face only |
| Mounting Orientation | Horizontal or vertical |
