MTRJP-001-3BD36J

IRONHORSE MTR SERIES PREMIUM EFFICIENCY

$367.00USD

Precio no incluye IVA

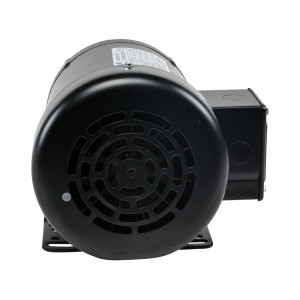

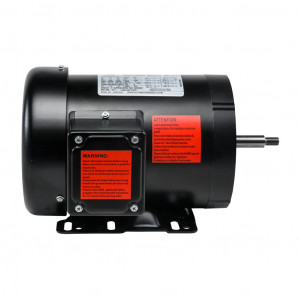

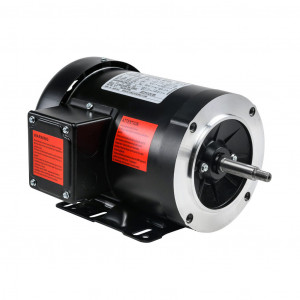

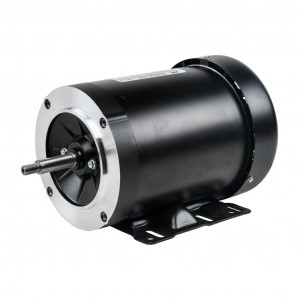

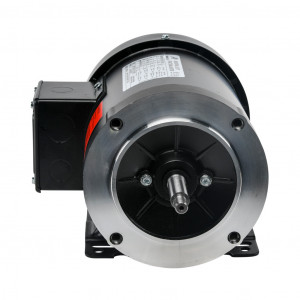

IRONHORSE MTR SERIES PREMIUM EFFICIENCY AC INDUCTION MOTOR, CENTRIFUGAL JET PUMP, 1HP, 3-PHASE, 208-230/460 VAC, 3600RPM, TEFC, 56J FRAME, ROLLED STEEL, REMOVABLE BASE/C-FACE MOUNT.

Modelo: MTRJP-001-3BD36J

Documentos:

MTRJP-001-3BD36J 2D Drawing

Product Line Brochure

Category 2D Drawing

Data Pack

Motor Manual

Product Cut Sheet

MTRJP-001-3BD36J STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=MTRJP-001-3BD36J"

Debug Cantidad: "1"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Martes, 23 de Junio de 2026"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "102"

Debug idProveedor: "106"

Martes, 23 de Junio de 2026

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Unidades Disponibles: 1

Precio (no incluye IVA):

$367.00USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	IronHorse
Item	Motor
Series	MTR
Efficiency Group	Premium efficiency
Efficiency	77
Voltage Type	AC

Motor Type	Induction
Motor Application	Centrifugal jet pump
Horsepower Rating	1hp
Number of Phases	3
Voltage Rating	208-230/460 VAC
Synchronous Speed	3600rpm
Nameplate RPM	3500rpm
Overload Type	None
Enclosure Type	TEFC
Shaft Type	Round threaded 20 UNF-2A
Shaft Diameter	5/8in
Shaft Material	AISI 420 stainless steel
Motor Frame	56J
Frame Material	Rolled steel
Electrically Reversible	Yes
Insulation Class	Class F
IP Rating	IP43
Service Factor	1.15
NEMA Design	Design B
Junction Box Orientation	F1
Mounting	Removable base/C-face
Mounting Orientation	Horizontal or vertical
