MTRJ-P50-3BD36J

[2% off $245.00 ] IRONHORSE MTR SERIES STANDARD EFFICIENCY

$240.1USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

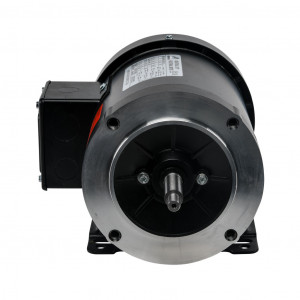

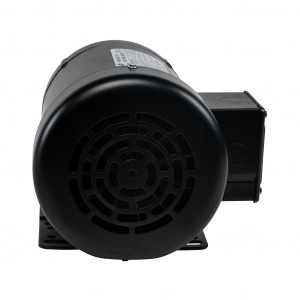

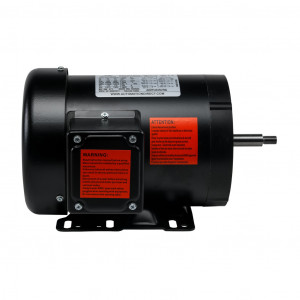

IRONHORSE MTR SERIES STANDARD EFFICIENCY AC INDUCTION MOTOR, CENTRIFUGAL JET PUMP, 1/2HP, 3-PHASE, 230/460 VAC, 3600RPM, TEFC, 56J FRAME, ROLLED STEEL, REMOVABLE BASE/C-FACE MOUNT.

Modelo: MTRJ-P50-3BD36J

Documentos:

MTRJ-P50-3BD36J 2D Drawing

Product Line Brochure

Category 2D Drawing

Data Pack

Motor Manual

Product Cut Sheet

MTRJ-P50-3BD36J STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=MTRJ-P50-3BD36J"

Debug Cantidad: "8"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Viernes, 14 de Noviembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "102"

Debug idProveedor: "102"

Viernes, 14 de Noviembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$240.1USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	IronHorse
Item	Motor
Series	MTR
Efficiency Group	Standard efficiency
Efficiency	66
Voltage Type	AC

Motor Type	Induction
Motor Application	Centrifugal jet pump
Horsepower Rating	1/2hp
Number of Phases	3
Voltage Rating	230/460 VAC
Synchronous Speed	3600rpm
Nameplate RPM	3450rpm
Overload Type	None
Enclosure Type	TEFC
Shaft Type	Round threaded 20 UNF-2A
Shaft Diameter	5/8in
Shaft Material	AISI 420 stainless steel
Motor Frame	56J
Frame Material	Rolled steel
Electrically Reversible	Yes
Insulation Class	Class F
IP Rating	IP43
Service Factor	1.15
NEMA Design	Design B
Junction Box Orientation	F1
Mounting	Removable base/C-face
Mounting Orientation	Horizontal or vertical
