[16% off $226.00 ] IRONHORSE MTPM SERIES DC PERMANENT MAGNE
$189.84USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

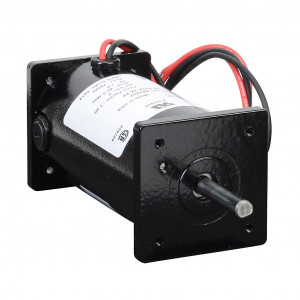

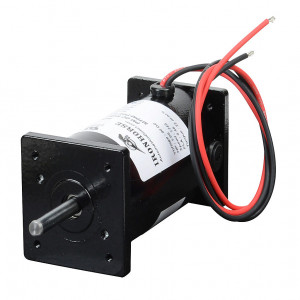

IRONHORSE MTPM SERIES DC PERMANENT MAGNET MOTOR, SCR-PWM RATED, 1/26HP, 90 VDC, 1749RPM, TENV, SMALL FRAME, ROLLED STEEL, FLANGE MOUNT.
Modelo: MTPM-P04-1L17
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$189.84USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Motor |
| Voltage Type | DC |
| Motor Type | Permanent magnet |
| Motor Application | SCR-PWM rated |
| Horsepower Rating | 1/26hp |
| Voltage Rating | 90 VDC |
|---|---|
| Synchronous Speed | 1749rpm |
| Nameplate RPM | 1749rpm |
| Overload Type | None |
| Enclosure Type | TENV |
| Shaft Type | Round full flat with keyway |
| Shaft Diameter | 5/16in |
| Shaft Material | 1215 cold rolled steel |
| Motor Frame | Small |
| Frame Material | Rolled steel |
| Electrically Reversible | Yes |
| Insulation Class | Class F |
| IP Rating | IP40 |
| Service Factor | 1.0 |
| Mounting | Flange |
| Mounting Orientation | Horizontal or vertical |
| Additional Information | 18in leads |
