[2% off $80.00 ] WEG ELECTRIC MANUAL MOTOR PROTECTOR, ROT
$78.4USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

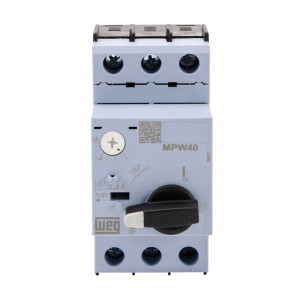

WEG ELECTRIC MANUAL MOTOR PROTECTOR, ROTARY, 1.6A, THERMAL OVERLOAD, 1.0-1.6A ADJUSTABLE, 20.8A INSTANTANEOUS TRIP RATING, OPEN, 45MM FRAME.
Fecha Entrega:
Precio (no incluye IVA):
$78.4USD
Atributos del producto
| Brand | WEG Electric |
|---|---|
| Item | Motor protector |
| Starter Type | Manual |
| Actuator Type | Rotary |
| Amperage Rating | 1.6A |
| Voltage Rating | 600 VAC |
| Horsepower Rating | 3/4hp |
|---|---|
| Relay Type | Thermal overload |
| Operation Type | Bi-metallic |
| Full Load Amperage Range | 1.0-1.6A adjustable |
| Instantaneous Trip Rating | 20.8A |
| Number of Poles | 3 |
| Contact Type | (3) N.O. |
| Trip Class | Trip Class 10 |
| Phase Loss Sensitive | Yes |
| Ground Fault Protection | No |
| SCCR Rating | 65kA SCCR |
| UL Rating | UL 508 rated |
| Enclosure Type | Open |
| Frame | 45mm |
| Mounting | 35mm DIN rail |
| Connection | Screw terminal |
| Additional Information | For UL Type E listing, Power terminal LST25 and Short Circuit Alarm contact block TSB must be added. Suitable as a motor disconnect |
