[16% off $485.00 ] FLOWLINE SWITCH-TEK VIBRATION FORK LIQUI
$407.4USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

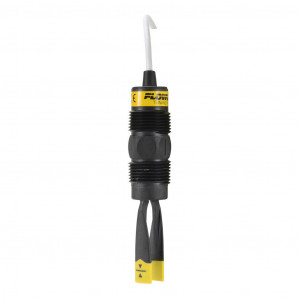

FLOWLINE SWITCH-TEK VIBRATION FORK LIQUID LEVEL SWITCH, ANY ORIENTATION MOUNT, 2.3IN INSERTION LENGTH, RYTON WETTED PARTS, -40 TO 176 DEG F, 3/4IN MALE NPT PROCESS CONNECTION, SPST RELAY, N.O./N.C. SELECTABLE, 10FT 24AWG 5-CONDUCTOR SHIELDED CABLE.
Modelo: LZ12-1405
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$407.4USD
Atributos del producto
| Brand | Flowline |
|---|---|
| Series | Switch-Tek |
| Item | Level switch |
| Sensor Type | Vibration fork |
| Media Type | Liquid |
| Mounting | Any orientation |
| Insertion Length | 2.3in |
|---|---|
| Process Connection | 3/4in male NPT |
| Process Temperature | -40 to 176 deg F |
| Output | SPST relay, N.O./N.C. selectable |
| Operating Voltage | 12-30 VDC |
| Wetted Parts | Ryton |
| Electrical Connection | 10ft 24AWG 5-conductor shielded cable |
| Jacket Material | Polypropylene |
| Includes | DC NPN switch for maintenance alarm |
| DataSheet | https |
