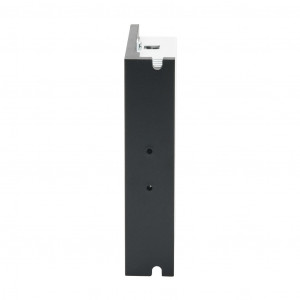

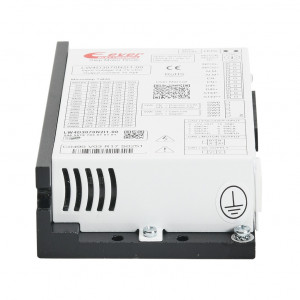

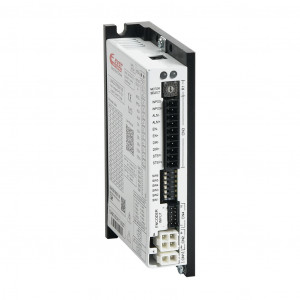

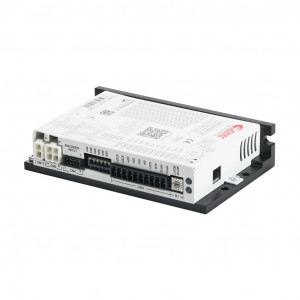

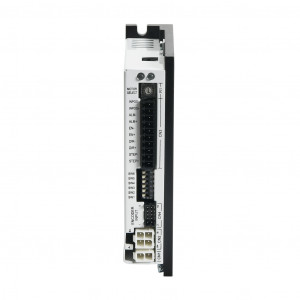

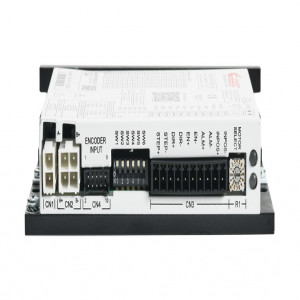

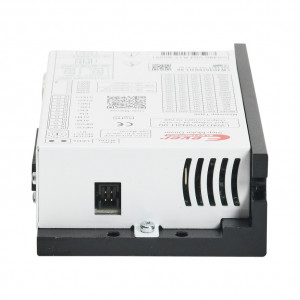

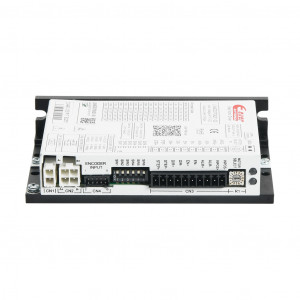

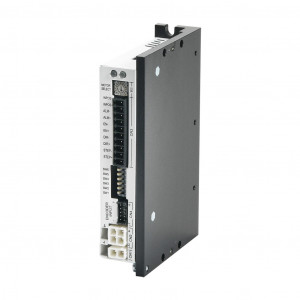

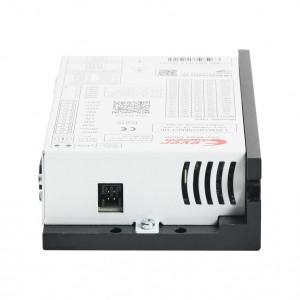

EVER MOTION SOLUTIONS DC OPEN LOOP ADVAN
$129.00USD
Precio no incluye IVAEVER MOTION SOLUTIONS DC OPEN LOOP ADVANCED MICROSTEPPING STEPPER DRIVE, 10A PER PHASE, 2-PHASE OUTPUT, 24-80 VDC, BIPOLAR, POSITION MODE, 200 TO 51200 STEPS PER REVOLUTION.
Marca: EVER MOTION SOLUTIONSModelo: LW4D3070N2I1-00
Miércoles, 16 de Abril de 2025
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Viernes, 18 De Abril De 2025
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$129.00USD
Atributos del producto
| Brand | Ever Motion Solutions |
|---|---|
| Item | Stepper drive |
| Stepper Drive Type | Open/closed loop |
| Controller Type | Advanced microstepping |
| Voltage Type | DC |
| Amperage Rating | 10A per phase |
| Number of Output Phases | 2 |
|---|---|
| Nominal Input Voltage | 24-75 VDC |
| Winding Type Control | Bipolar |
| Output Type | MOSFET, dual H-bridge and bipolar chopper output |
| Current Control | 4-state PWM at 40 kHz |
| Steps per Revolution | 200 to 65536 |
| Encoder Output | No |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Temperature Rating | 5 to 40 deg C |
| Enclosure Type | Enclosed |
| IP Rating | IP20 |
| Mounting | Panel |
| Control Mode | Position |
| Command Signal(s) |
|
| Stall Detection | Yes |
| Number of Discrete Input Points | 1 |
| Discrete Input Type | Sinking/sourcing/line driver (differential) |
| Number of Discrete Output Points | 2 |
| Discrete Output Type | Sinking/sourcing |
| Tuning Mode | Pre-tuned or optional configuration software |
| Idle Current Reduction | Yes |
| Drive Features | Sinusoidal current control (quiet operation), anti-resonance (electronic damping) and auto motor matching (self-configuration) |
| Protection Type(s) |
|
| Configuration | Rotary dial, dipswitches or optional configuration software |
| Requires | LW4D3KIT-C0 connector kit or LW4D3KIT-050 cable kit |
| Additional Information | Optional LW4D3KIT-050 connection cable kit, LW4D3KIT-C0 connector kit and EVER-PGM-1 programming cable available for software configuration |
