ALLIANCE SENSORS INDUCTIVE LINEAR POSITI
$658.00USD

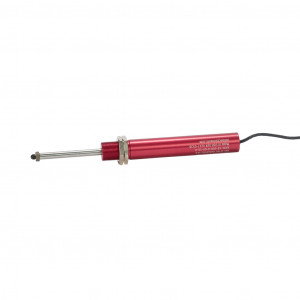

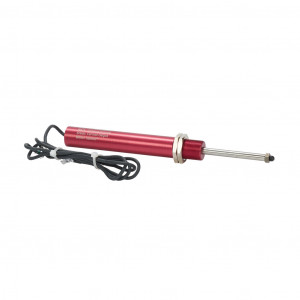

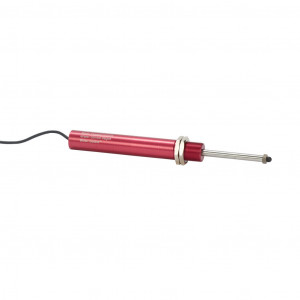

Precio no incluye IVAALLIANCE SENSORS INDUCTIVE LINEAR POSITION SENSOR, SPRING LOADED, 50MM STROKE, 6.4MM SHAFT DIAMETER, 4-20 MA OUTPUT, 19MM DIAMETER X 129.0MM BODY, M18 X 1 MOUNT, PIGTAIL, 3.2FT/1M CABLE LENGTH.
Marca: ALLIANCE SENSORSModelo: LRSI18-050A-00-20A
Este producto incluye
Envío gratis
* Aplican restricciones
Miércoles, 18 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Viernes, 20 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$658.00USD
Atributos del producto
| Brand | Alliance Sensors |
|---|---|
| Item | Linear position sensor |
| Transducer Type | Inductive |
| Action | Spring loaded |
| Stroke | 50mm |
| Shaft Diameter | 6.4mm |
| Output | 4-20 mA |
|---|---|
| Head Type | AGD #9 contact tip |
| Head Material | Hardened steel |
| Housing Material | Aluminum |
| Housing Size | 19mm diameter x 129.0mm body |
| Operating Voltage | 18-30 VDC |
| Sensor Resolution | 0.025% of full scale |
| Linearity | +/- 0.15% |
| Switching Cycles | 250,000,000 cycles |
| Mounting | M18 x 1 |
| IP Rating | IP67 |
| Connection | Pigtail |
| Number of Wires | 4 |
| Conductor Size | 28 AWG |
| Cable Length | 3.2ft/1m |
| Jacket Material | PUR |
| Includes | Mounting hardware |
| Additional Information | Contactless operation |
