PENINSULAR HYDRAULIC CYLINDER, NFPA TIE
$1368.00USD

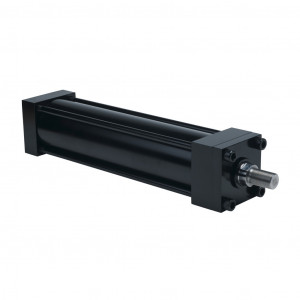

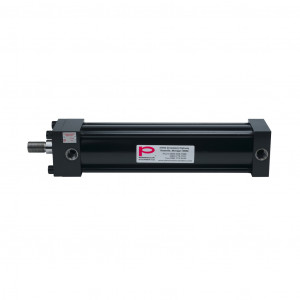

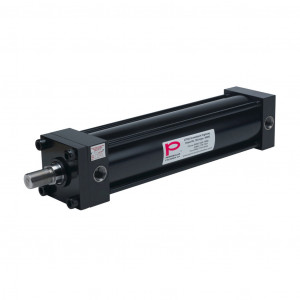

Precio no incluye IVAPENINSULAR HYDRAULIC CYLINDER, NFPA TIE ROD, 4IN BORE, 1-3/4IN ROD DIAMETER, 16IN STROKE, DOUBLE ACTING.
Modelo: HP0400A16S
DIMENSIONES
Aplica cargo de flete extra
Contáctanos para cotizar
*Estamos trabajando en mejorar tu experiencia de compra con estos articulos una disculpa por los inconvenientes*
Fecha Entrega:
Unidades Disponibles: 3
Precio (no incluye IVA):
$1368.00USD
Atributos del producto
| Brand | Peninsular |
|---|---|
| Item | Cylinder |
| Working Fluid | Petroleum based hydraulic fluid |
| Cylinder Type | NFPA tie rod |
| Bore Diameter | 4in |
| Stroke | 16in |
| Port Size | SAE size -12 o-ring port |
|---|---|
| Action Type | Double acting |
| Body Material | Honed, chrome plated DOM steel tube |
| End Cap Material | Steel |
| Rod Material | Chrome-plated steel |
| Rod Diameter | 1-3/4in |
| Rod Thread Size | 1 1/4-12 |
| Bushing Type | Ductile iron |
| Alternate ID | HP0 400x16AM-TNNN-TNNN-O |
