[11% off $1134.00 ] IRONHORSE HEAVY-DUTY HELICAL GEARBOX, 40
$1009.26USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

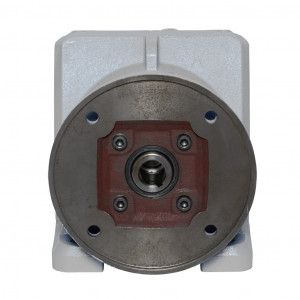

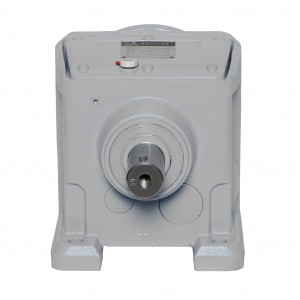

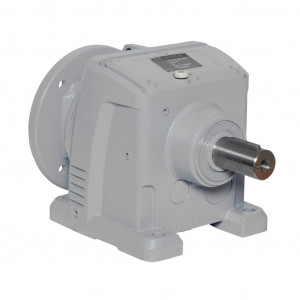

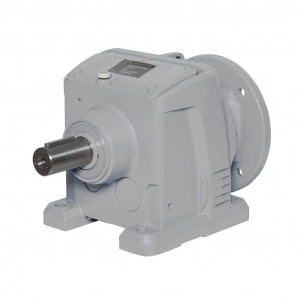

IRONHORSE HEAVY-DUTY HELICAL GEARBOX, 40:1 RATIO, 182/4TC-FACE INPUT, INLINE, 1.625IN DIAMETER OUTPUT SHAFT, NOMINAL 3HP AT 1.0 SF, 3850 LB-IN MECHANICAL OUTPUT TORQUE, TYPE-77 FRAME, CAST IRON HOUSING, FOOT MOUNT.
Modelo: HGR-77-040-C
DIMENSIONES
Aplica cargo de flete extra
Contáctanos para cotizar
*Estamos trabajando en mejorar tu experiencia de compra con estos articulos una disculpa por los inconvenientes*
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Jueves, 12 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$1009.26USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Gearbox |
| Application | General purpose |
| Duty Rating | Heavy-duty |
| Gearbox Type | Helical |
| Gear Ratio | 40 |
| Speed Rating | 1750 RPM input / 45 RPM output |
|---|---|
| Input Configuration | 182TC-Face |
| Input Power Rating | Nominal 3hp at 1.0 SF |
| Output Configuration | Inline |
| Output Shaft Diameter | 1.625in |
| Mechanical Output Torque | 6640 lb-in |
| Thermal Output Torque | 6640 lb-in |
| Frame | Type-77 |
| Housing Material | Cast iron |
| Mounting | Foot |
| Finish | Anti-corrosion primer and paint |
| Lubrication Type | Pre-filled with HD320 mineral oil |
| Oil Seal Type | Double-lip |
