[11% off $4998.00 ] IRONHORSE HEAVY-DUTY HELICAL BEVEL GEARB
$4448.22USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

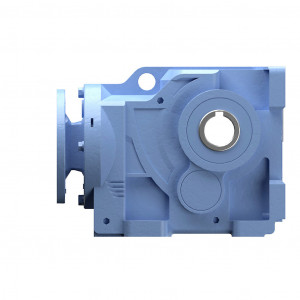

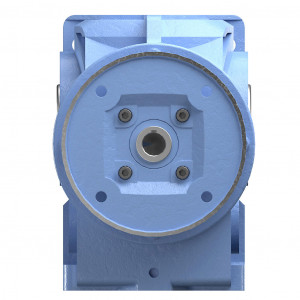

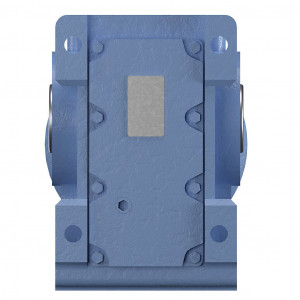

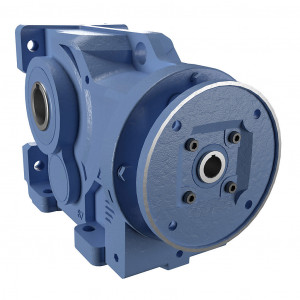

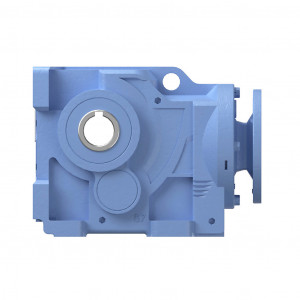

IRONHORSE HEAVY-DUTY HELICAL BEVEL GEARBOX, 60:1 RATIO, 182/4TC-FACE INPUT, HOLLOW, 2.375IN DIAMETER OUTPUT SHAFT, NOMINAL 5HP AT 2.22 SF, 22270 LB-IN MECHANICAL OUTPUT TORQUE, TYPE-87 FRAME, CAST IRON HOUSING, VERTICAL OR HORIZONTAL MOUNT.
Modelo: HBR-87-060-C
DIMENSIONES
Aplica cargo de flete extra
Contáctanos para cotizar
*Estamos trabajando en mejorar tu experiencia de compra con estos articulos una disculpa por los inconvenientes*
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$4448.22USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Gearbox |
| Application | General purpose |
| Duty Rating | Heavy-duty |
| Gearbox Type | Helical bevel |
| Gear Ratio | 60 |
| Speed Rating | 1750 RPM input / 28 RPM output |
|---|---|
| Input Configuration | 182/4TC-Face |
| Input Power Rating | Nominal 5hp at 2.22 SF |
| Output Configuration | Hollow |
| Output Shaft Diameter | 2.375in |
| Mechanical Output Torque | 22270 lb-in |
| Frame | Type-87 |
| Housing Material | Cast iron |
| Mounting | Vertical or horizontal |
| Finish | Anti-corrosion primer and paint |
| Lubrication Type | Pre-filled with HD320 mineral oil |
| Oil Seal Type | Double-lip |
