[11% off $2112.00 ] IRONHORSE HEAVY-DUTY HELICAL BEVEL GEARB
$1879.68USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

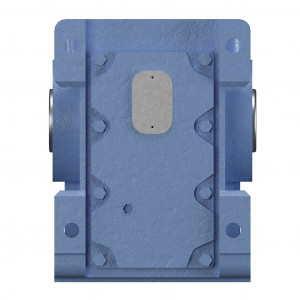

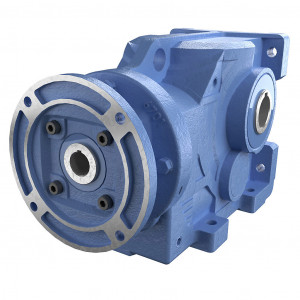

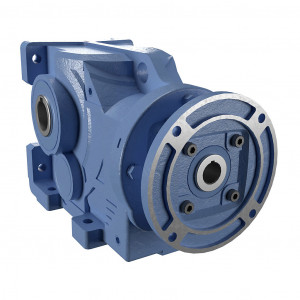

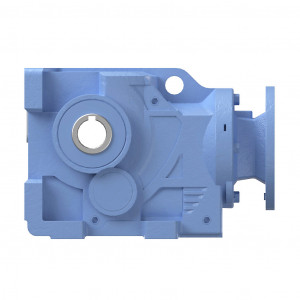

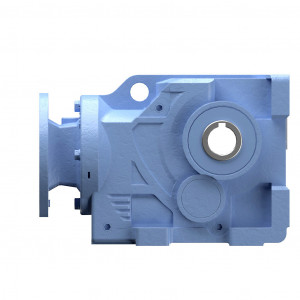

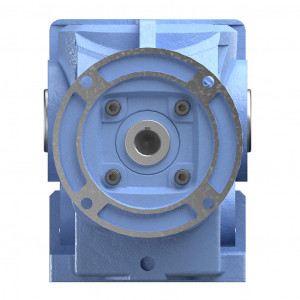

IRONHORSE HEAVY-DUTY HELICAL BEVEL GEARBOX, 20:1 RATIO, 143/5TC-FACE INPUT, HOLLOW, 1.5IN DIAMETER OUTPUT SHAFT, NOMINAL 2HP AT 3.13 SF, 4530 LB-IN MECHANICAL OUTPUT TORQUE, TYPE-67 FRAME, CAST IRON HOUSING, VERTICAL OR HORIZONTAL MOUNT.
Modelo: HBR-67-020-B
DIMENSIONES
Aplica cargo de flete extra
Contáctanos para cotizar
*Estamos trabajando en mejorar tu experiencia de compra con estos articulos una disculpa por los inconvenientes*
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$1879.68USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Gearbox |
| Application | General purpose |
| Duty Rating | Heavy-duty |
| Gearbox Type | Helical bevel |
| Gear Ratio | 20 |
| Speed Rating | 1750 RPM input / 79 RPM output |
|---|---|
| Input Configuration | 143/5TC-Face |
| Input Power Rating | Nominal 2hp at 3.13 SF |
| Output Configuration | Hollow |
| Output Shaft Diameter | 1.5in |
| Mechanical Output Torque | 4530 lb-in |
| Frame | Type-67 |
| Housing Material | Cast iron |
| Mounting | Vertical or horizontal |
| Finish | Anti-corrosion primer and paint |
| Lubrication Type | Pre-filled with HD320 mineral oil |
| Oil Seal Type | Double-lip |
