[3% off $1780.00 ] IRONHORSE HEAVY-DUTY HELICAL BEVEL GEARB



$1726.6USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

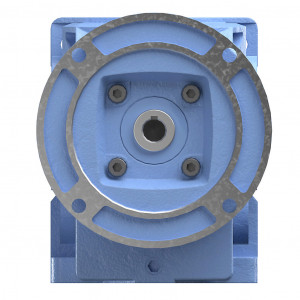

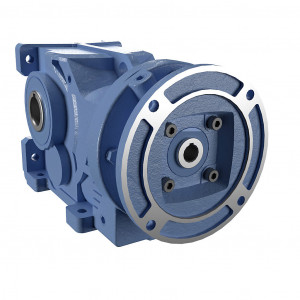

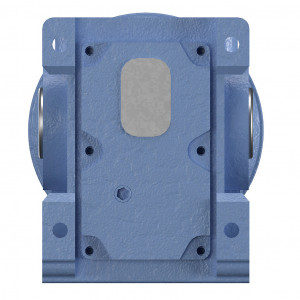

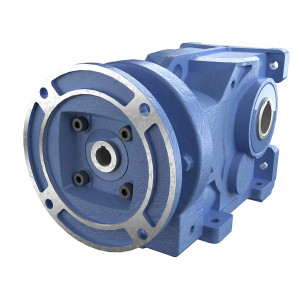

IRONHORSE HEAVY-DUTY HELICAL BEVEL GEARBOX, 60:1 RATIO, 56C-FACE INPUT, HOLLOW, 1.375IN DIAMETER OUTPUT SHAFT, NOMINAL 1HP AT 1.84 SF, 3540 LB-IN MECHANICAL OUTPUT TORQUE, TYPE-47 FRAME, CAST IRON HOUSING, VERTICAL OR HORIZONTAL MOUNT.

Modelo: HBR-47-060-A

---

Compartir

Documentos:

HBR-47-060-A 2D Drawing

Product Line Brochure

Category 2D Drawings

Product Manual

Product Cut Sheet

HBR-47-060-A STP 3D Model

Technical Specifications

Este producto incluye

Envío gratis

* Aplican restricciones

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=HBR-47-060-A"

Debug Cantidad: "4"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Jueves, 13 de Noviembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "182"

Debug idProveedor: "106"

Jueves, 13 de Noviembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***


Precio (no incluye IVA):

$1726.6USD

Cantidad:

Agregar a carrito Comprar ahora Agregar a Favoritos

Atributos Arriba

Atributos del producto

Brand	IronHorse
Item	Gearbox
Application	General purpose
Duty Rating	Heavy-duty
Gearbox Type	Helical bevel
Gear Ratio	60

---

Ver más

---

Speed Rating	1750 RPM input / 30 RPM output
Input Configuration	56C-Face
Input Power Rating	Nominal 1hp at 1.84 SF
Output Configuration	Hollow
Output Shaft Diameter	1.375in
Mechanical Output Torque	3540 lb-in
Frame	Type-47
Housing Material	Cast iron
Mounting	Vertical or horizontal
Finish	Anti-corrosion primer and paint
Lubrication Type	Pre-filled with HD320 mineral oil
Oil Seal Type	Double-lip
