[3% off $1625.00 ] IRONHORSE HEAVY-DUTY HELICAL BEVEL GEARB



$1576.25USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

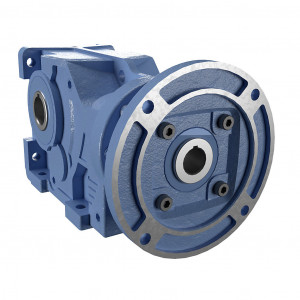

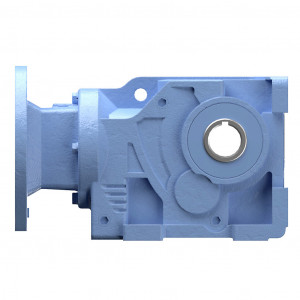

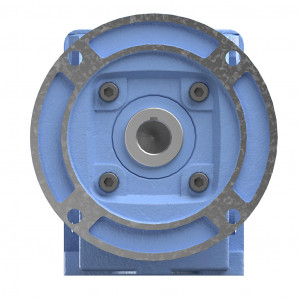

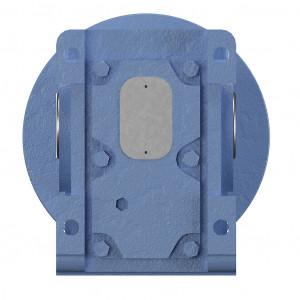

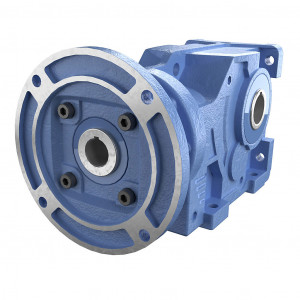

IRONHORSE HEAVY-DUTY HELICAL BEVEL GEARBOX, 25:1 RATIO, 143/5TC-FACE INPUT, HOLLOW, 1.25IN DIAMETER OUTPUT SHAFT, NOMINAL 2HP AT 1.1 SF, 1659 LB-IN MECHANICAL OUTPUT TORQUE, TYPE-37 FRAME, CAST IRON HOUSING, VERTICAL OR HORIZONTAL MOUNT.

Modelo: HBR-37-025-B

---

Compartir

Documentos:

HBR-37-025-B 2D Drawing

Product Line Brochure

Category 2D Drawings

Product Manual

Product Cut Sheet

HBR-37-025-B STP 3D Model

Technical Specifications

Este producto incluye

Envío gratis

* Aplican restricciones

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=HBR-37-025-B"

Debug Cantidad: "1"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Jueves, 13 de Noviembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "182"

Debug idProveedor: "106"

Jueves, 13 de Noviembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***


Precio (no incluye IVA):

$1576.25USD

Cantidad:

Agregar a carrito Comprar ahora Agregar a Favoritos

Atributos Arriba

Atributos del producto

Brand	IronHorse
Item	Gearbox
Application	General purpose
Duty Rating	Heavy-duty
Gearbox Type	Helical bevel
Gear Ratio	25

---

Ver más

---

Speed Rating	1750 RPM input / 76 RPM output
Input Configuration	143/5TC-Face
Input Power Rating	Nominal 2hp at 1.1 SF
Output Configuration	Hollow
Output Shaft Diameter	1.25in
Mechanical Output Torque	1659 lb-in
Frame	Type-37
Housing Material	Cast iron
Mounting	Vertical or horizontal
Finish	Anti-corrosion primer and paint
Lubrication Type	Pre-filled with HD320 mineral oil
Oil Seal Type	Double-lip
