H801651-1

HELUKABEL HELUKAT FLEXIBLE PROFINET TYPE

$5.00USD

Precio no incluye IVA

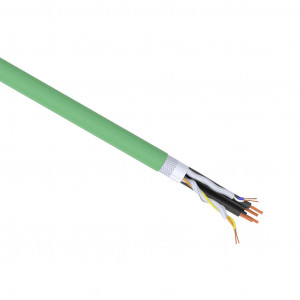

HELUKABEL HELUKAT FLEXIBLE PROFINET TYPE B CABLE, INDIVIDUAL AND OVERALL SHIELDED, (2) SHIELDED TWISTED PAIRS, (4) UNSHIELDED CONDUCTORS, 22 AWG AND 16 AWG, 7-STRANDED, BARE COPPER, POLYETHYLENE CONDUCTOR INSULATION MATERIAL, FRNC JACKET, GREEN, CUT TO LENGTH.

Marca: HELUKABEL
Modelo: H801651-1

Documentos:

Product Line Brochure

Product Cut Sheet

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Entrega estimada:

Debug deliveryArray[1]: "Disponible"

Debug trim(deliveryArray[1]): "Disponible"

Jueves, 24 De Julio De 2025

* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.

											*** Condición ejecutada: Entró en else ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$5.00USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	Helukabel
Item	Cable
Series	HELUKAT
Protocol	Cat5e Ethernet and fieldbus
Wire/Cable Type	Profinet Type B
UL Wire/Cable Type	AWM

Applicable Standards	Halogen free and UL 21282
Application	Data
Flexibility	Flexible
Voltage Rating	150V
Conductors	(2) shielded twisted pairs, (4) unshielded conductors
Conductor Size	22 AWG and 16 AWG
Conductor Stranding	7-stranded
Conductor Material	Bare copper
Conductor Insulation Material	Polyethylene
Conductor Insulation Color	Pair 1
Shielding	Individual aluminized polyester foil and tinned copper braid over pairs
Jacket Material	Flame-Retardent-Non-Corrosive (FRNC)
Jacket color	Green
Nominal Overall Cable Diameter	0.406in
Bulk Length	Cut to length
Package Type	20 to 50ft = Coil 51 to 235ft =14 x 7in Reel 236 to 340ft =14 x 10in Reel 341 to 520ft = 16 x 10in Reel 521 to 725ft = 18 x 10in Reel 726 to 940ft = 18 x 13in Reel 941 to 2105ft = 24 x 17in Wooden Reel 2106 to 2500ft = 30 x 17in Wooden Reel
