H11007800-1

HELUKABEL HELUKAT CONTINUOUS FLEXING PRO

$3.00USD

Precio no incluye IVA

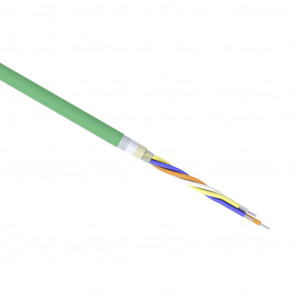

HELUKABEL HELUKAT CONTINUOUS FLEXING PROFINET TYPE R CABLE, OVERALL SHIELDED, 1 STAR QUAD, 22 AWG, 19-STRANDED, TINNED COPPER, POLYOLEFIN CONDUCTOR INSULATION MATERIAL, PUR JACKET, GREEN, CUT TO LENGTH.

Marca: HELUKABEL
Modelo: H11007800-1

Documentos:

Product Line Brochure

Product Cut Sheet

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Entrega estimada:

Debug deliveryArray[1]: "Disponible"

Debug trim(deliveryArray[1]): "Disponible"

Lunes, 21 De Julio De 2025

* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.

											*** Condición ejecutada: Entró en else ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$3.00USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	Helukabel
Item	Cable
Series	HELUKAT
Protocol	Cat5e Ethernet and fieldbus
Wire/Cable Type	Profinet Type R
UL Wire/Cable Type	AWM

Applicable Standards	Halogen free and UL 21209
Application	Data
Flexibility	Continuous flexing
Voltage Rating	1000V
Conductors	1 star quad
Conductor Size	22 AWG
Conductor Stranding	19-stranded
Conductor Material	Tinned copper
Conductor Insulation Material	Polyolefin
Conductor Insulation Color	Pair 1
Shielding	Overall aluminized polyester foil and tinned copper braid
Jacket Material	PUR
Jacket color	Green
Nominal Overall Cable Diameter	0.283in
Bulk Length	Cut to length
Package Type	20 to 99ft = Coil 100 to 485ft =14 x 7in Reel 486 to 695ft =14 x 10in Reel 696 to 1065ft = 16 x 10in Reel 1066 to 1490ft = 18 x 10in Reel 1491 to 1940ft = 18 x 13in Reel 1941 to 2500ft = 24 x 17in Wooden Reel
