[5% off $202.00 ] IRONHORSE ENCODER, 5-24 VDC, NPN OPEN CO
$191.9USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA
IRONHORSE ENCODER, 5-24 VDC, NPN OPEN COLLECTOR OUTPUT, 1/10/20 PPR, 61MM DIAMETER BODY, NEMA 3R, IP14, 6FT CABLE LENGTH, PIGTAIL. FOR USE WITH GSD8 SERIES DC DRIVES. MOUNTING HARDWARE AND (3) MAGNETS INCLUDED.
Modelo: GSDA-PU2R
Entrega estimada:
Martes, 22 De Abril De 2025
* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$191.9USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Encoder |
| Replacement | No |
| Voltage Rating | 5-24 VDC |
| Encoder Output Type | NPN open collector |
| Encoder Resolution | 1/10/20 ppr |
| Shaft Type | Hollow |
|---|---|
| Shaft Diameter | Tapped #10-32 screw |
| Frequency Response | 80 Hz/800 Hz/1.6 kHz |
| Speed Rating | 5000rpm |
| Flange Mount | No |
| Encoder Body Diameter | 61mm |
| Housing Material | Plastic |
| NEMA Rating | 3R |
| IP Rating | IP14 |

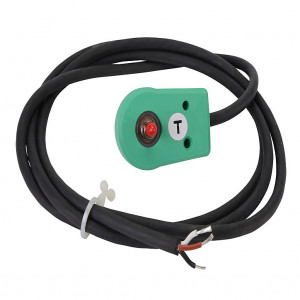

| Cable Length | 6ft |
| Connector Type | Pigtail |
| For Use With | GSD8 series DC drives |

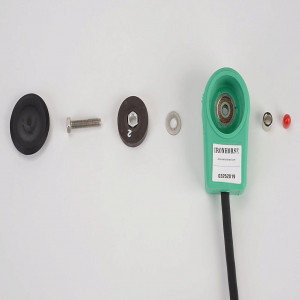

| Includes | Mounting hardware and (3) magnets |
