[16% off $385.00 ] IRONHORSE GSD7 SERIES DC REVERSING DRIVE
$323.4USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

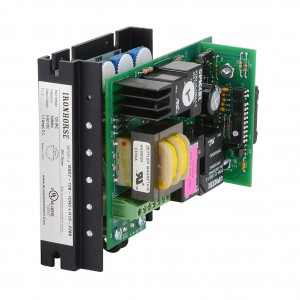

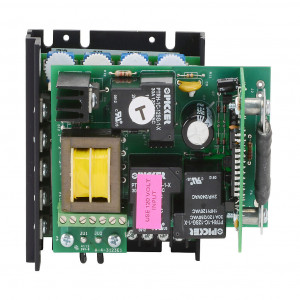

IRONHORSE GSD7 SERIES DC REVERSING DRIVE, 120 VAC, 1-PHASE, 1/15 TO 1/8HP AT 90 VDC, 1.2A, OPEN FRAME, PANEL MOUNT, BUILT-IN REVERSE, MAXIMUM 3 REVERSES/MINUTE, POTENTIOMETER INPUT, SCR OUTPUT.
Modelo: GSD7-120-1CR3
Jueves, 26 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Martes, 03 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$323.4USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Drive |
| Controller Type | Reversing |
| Series | GSD7 |
| Voltage Type | DC |
| Number of Input Phases | 1 |
| Nominal Input Voltage | 120 VAC |
|---|---|
| Nominal Output Voltage | Output up to 90 VDC |
| Horsepower by Voltage | 1/15 to 1/8hp at 90 VDC |
| Amperage Rating | 1.2A |
| Variable Torque Amperage Rating | 500 mA - 1.2A |
| Control Mode | DC |
| Safe Torque Off (STO) | No |
| Temperature Rating | -10 to 45 deg C |
| Enclosure Type | Open frame |
| IP Rating | IP00 |
| Mounting | Panel |
| Input Signal | Potentiometer input |
| On/Off Switch | No |
| Shunt Field Supply | Yes |
| Output Type | SCR output |
| Reverse Capability | Built-in |
| Reverse Cycle Frequency | Maximum 3 reverses/minute |
| Output Frequency Range | DC |
| Connector Type | Screw terminals |
| SCCR Rating | SCCR exempt |
| For Use With | Permanent magnet DC, shunt wound DC and universal motors |
| Includes | Speed potentiometer with knob and 0-100% faceplate |
| DataSheet | https |
