[16% off $206.00 ] IRONHORSE GSD4 SERIES DC GENERAL PURPOSE
$173.04USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

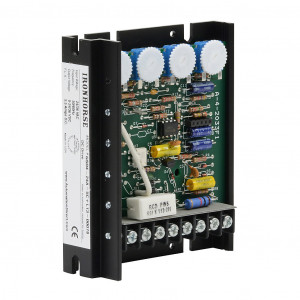

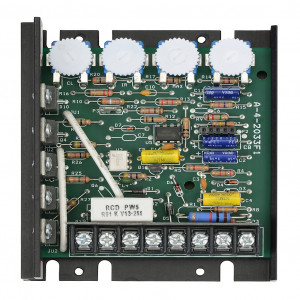

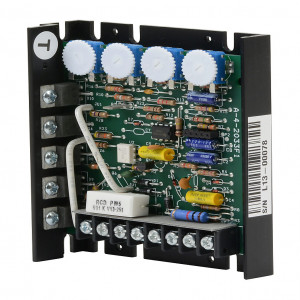

IRONHORSE GSD4 SERIES DC GENERAL PURPOSE DRIVE, 24/36 VAC, 1-PHASE, 1/50 TO 1/6HP AT 24-36 VDC, 5.5A, OPEN FRAME, PANEL MOUNT, FIELD-INSTALL REVERSE, POTENTIOMETER INPUT, SCR OUTPUT.
Modelo: GSD4-24A-5C
Viernes, 29 de Noviembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Martes, 03 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$173.04USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Drive |
| Controller Type | General purpose |
| Series | GSD4 |
| Voltage Type | DC |
| Number of Input Phases | 1 |
| Nominal Input Voltage | 24/36 VAC |
|---|---|
| Nominal Output Voltage | Output up to 24/36 VDC |
| Horsepower by Voltage | 1/50 to 1/6hp at 24-36 VDC |
| Amperage Rating | 5.5A |
| Variable Torque Amperage Rating | 5.5A |
| Control Mode | DC |
| Safe Torque Off (STO) | No |
| Temperature Rating | -10 to 45 deg C |
| Enclosure Type | Open frame |
| IP Rating | IP00 |
| Mounting | Panel |
| Input Signal | Potentiometer input |
| On/Off Switch | No |
| Shunt Field Supply | Yes |
| Output Type | SCR output |
| Reverse Capability | Field-install |
| Output Frequency Range | DC |
| Connector Type | Screw terminals |
| SCCR Rating | SCCR exempt |
| For Use With | Permanent magnet DC, shunt wound DC and universal motors |
| Includes | Speed potentiometer with knob and 0-100% faceplate |
| DataSheet | https |
