[3% off $72.00 ] GLADIATOR MINIATURE CIRCUIT BREAKER, 1A,
$69.84USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

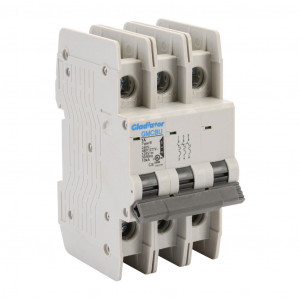

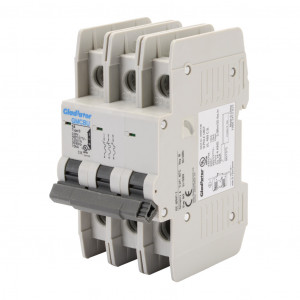

GLADIATOR MINIATURE CIRCUIT BREAKER, 1A, 480Y / 277 VAC / 125 VDC, 3-POLE, B CURVE, THERMAL MAGNETIC, 10KA @ 480Y/277 VAC INTERRUPTING RATING, 35MM DIN RAIL MOUNT.
Fecha Entrega:
Precio (no incluye IVA):
$69.84USD
Atributos del producto
| Brand | Gladiator |
|---|---|
| Item | Circuit breaker |
| Circuit Breaker Type | Miniature |
| Circuit Type | Feeder and branch |
| Current-Limiting | No |
| Amperage Rating | 1A |
| Voltage Rating | 480Y / 277 VAC / 125 VDC |
|---|---|
| Number of Poles | 3 |
| Trip Curve | B curve |
| Trip Type | Thermal magnetic |
| SCCR Rating | 10kA SCCR |
| UL Rating | UL 489 listed |
| Mounting | 35mm DIN rail |
| HACR Rated | Yes |
| Reverse Feed Capable | Yes |
