ALLIANCE SENSORS INDUCTIVE LINEAR POSITI
$1153.00USD

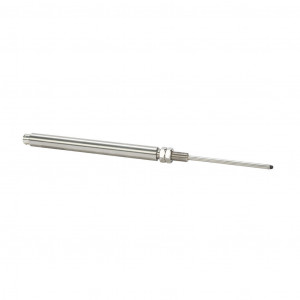

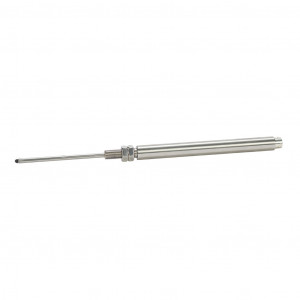

Precio no incluye IVAALLIANCE SENSORS INDUCTIVE LINEAR POSITION SENSOR, SPRING LOADED, 100MM STROKE, 6.4MM SHAFT DIAMETER, 0-10 VDC OUTPUT, 19MM DIAMETER X 194.1MM BODY, 1/2-20 UNF MOUNT, 6-PIN PT0.
Marca: ALLIANCE SENSORSModelo: GHSE19-100A-02-10S
Este producto incluye
Envío gratis
* Aplican restricciones
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$1153.00USD
Atributos del producto
| Brand | Alliance Sensors |
|---|---|
| Item | Linear position sensor |
| Transducer Type | Inductive |
| Action | Spring loaded |
| Stroke | 100mm |
| Shaft Diameter | 6.4mm |
| Output | 0-10 VDC |
|---|---|
| Head Type | AGD #9 contact tip |
| Head Material | Hardened steel |
| Housing Material | Stainless steel |
| Housing Size | 19mm diameter x 194.1mm body |
| Operating Voltage | 12-30 VDC |
| Sensor Resolution | 0.025% of full scale |
| Linearity | +/- 0.15% |
| Switching Cycles | 250,000,000 cycles |
| Mounting | 1/2-20 UNF |
| IP Rating | IP67 |

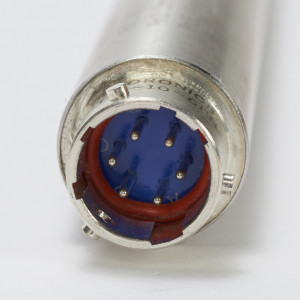

| Connection | 6-pin PT0 |
| Includes | Mounting hardware |
| Additional Information | Contactless operation |
