[3% off $727.00 ] GLADIATOR MOLDED CASE CIRCUIT BREAKER, 2
$705.19USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

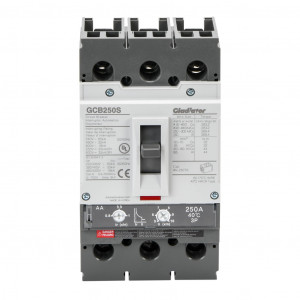

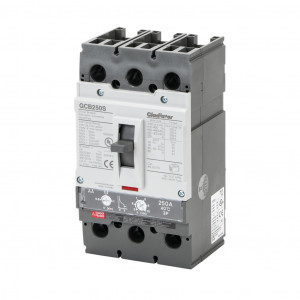

GLADIATOR MOLDED CASE CIRCUIT BREAKER, 250A, 600 VAC / 600 VDC, 3-POLE, CHARACTERISTICS, ADJUSTABLE THERMAL/ADJUSTABLE MAGNETIC, 35KA @ 480 VAC INTERRUPTING RATING, PANEL MOUNT. LINE AND LOAD LUG TERMINALS INCLUDED.
Este producto incluye
Envío gratis
* Aplican restricciones
Fecha Entrega:
Precio (no incluye IVA):
$705.19USD
Atributos del producto
| Brand | Gladiator |
|---|---|
| Item | Circuit breaker |
| Circuit Breaker Type | Molded case |
| Circuit Type | Feeder and branch |
| Current-Limiting | No |
| Frame Size | 250A frame |
| Amperage Rating | 250A |
|---|---|
| Voltage Rating | 600 VAC / 600 VDC |
| Number of Poles | 3 |
| Trip Curve | Characteristics |
| Trip Type | Adjustable thermal/adjustable magnetic |
| Interrupting Rating | 35kA @ 480 VAC |
| UL Rating | UL 489 listed |
| Mounting | Panel |
| HACR Rated | Yes |
| Reverse Feed Capable | Yes |
| Includes | Line and load lug terminals |
