[5% off $22.00 ] EDISON MODULAR FUSE HOLDER, ACCEPTS CLAS
$20.9USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

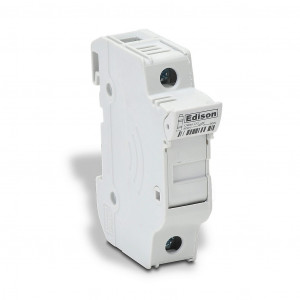

EDISON MODULAR FUSE HOLDER, ACCEPTS CLASS CC FUSES, 30A, 600V, 1-POLE, 18-4 AWG COPPER ONLY, INTEGRAL PRESSURE PLATE WITH SEPARATE SPADE CONNECTION, 35MM DIN RAIL MOUNT.
Modelo: EHCC1DU
Lunes, 28 de Abril de 2025
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 21 De Abril De 2025
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$20.9USD
Atributos del producto
| Brand | Edison |
|---|---|
| Item | Fuse holder |
| Modular | Yes |
| Blown Fuse Indicator | No |
| Accepts Fuse Class | CC |
| Amperage Rating | 30A |
| Voltage Rating | 600V |
|---|---|
| Number of Poles | 1 |
| Conductor Size | 18-4 AWG copper only |
| Conductor Connection Type | Integral pressure plate with separate spade connection |
| SCCR Rating | 200kA SCCR |
| Fuse Connection Type | Clip with reinforced spring |
| Mounting | 35mm DIN rail |
| DataSheet | https |
