[2% off $595.00 ] C-MORE MICRO EA3 SERIES TOUCH SCREEN HMI
$583.1USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

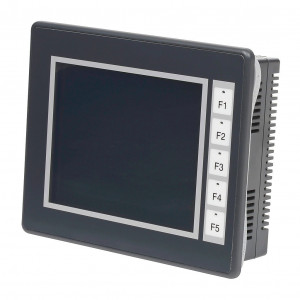

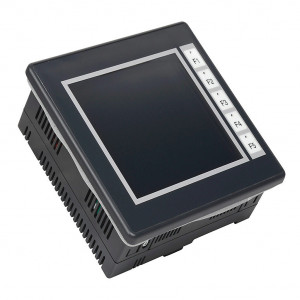

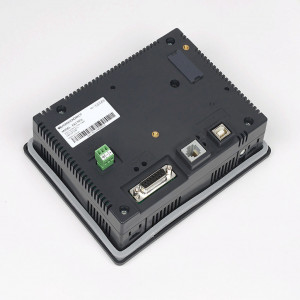

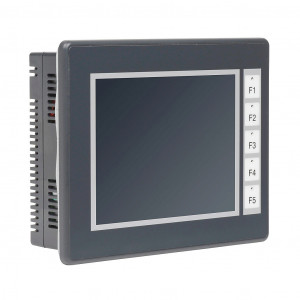

C-MORE MICRO EA3 SERIES TOUCH SCREEN HMI, 6IN COLOR TFT LCD, ANALOG RESISTIVE, 320 X 240 PIXEL, QVGA, LED BACKLIGHT, (2) SERIAL AND (1) USB B PORTS.
Fecha Entrega:
Precio (no incluye IVA):
$583.1USD
Atributos del producto
| Brand | C-more Micro |
|---|---|
| Item | HMI |
| Series | EA3 |
| Touch Screen | Yes |
| Display Size | 6in |
| Viewable Size | 5.7in |
| Display Type | Color TFT LCD |
|---|---|
| Widescreen | No |
| Display Maximum Colors | 32K colors |
| Display Resolution (W x H) | 320 x 240 pixel |
| Display Video Standard | QVGA |
| Display Orientation | Landscape/portrait |
| Backlight Type | LED |
| Power Requirement | 12-24 VDC |
| Housing Rating | NEMA 4/4X |
| Environmental Requirements | Indoor use only |
| IP Rating | IP65 |
| Serial Ports | (1) RS-232, (1) RS-232/RS-485/422 |
| USB Ports | (1) 2.0 Type B |
| Software Required | EA-MG-PGMSW programming software v3.6 or later |
| Includes | Mounting hardware and gasket |
| DataSheet | https |
