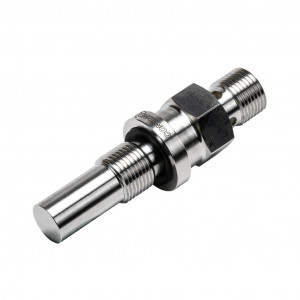

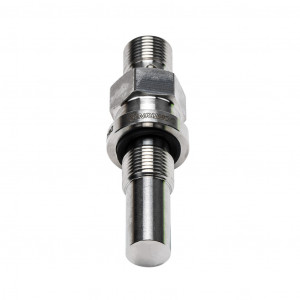

CONTRINEX INDUCTIVE PROXIMITY SENSOR, TU
$304.00USD
Precio no incluye IVACONTRINEX INDUCTIVE PROXIMITY SENSOR, TU
Marca: CONTRINEXModelo: DW-LS-703-P12G
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$304.00USD
Atributos del producto
| Brand | Contrinex |
|---|---|
| Item | Proximity sensor |
| Sensor Type | Inductive |
| Application | High pressure hydraulic |
| Shape | Tubular |
| Housing Size | 12mm diameter x 61mm body |
| Housing Material | 304 stainless steel |
|---|---|
| Barrel Type | Threaded |
| Sensing Method | Standard sensing, factor 1 |
| Adjustable | No |
| Number of Wires | 3 |
| Switching Output | PNP |
| Operation Mode | N.O. |
| Sensing Distance | 1.5mm |
| Mounting Type | Flush |
| IO-Link Compatible | Yes |
| Switching Frequency | 850 Hz |
| Operating Voltage | 10-30 VDC |
| Operating Temperature | -25 to 85c |
| Operating Pressure | 7252psi (500 bar) |
| Weld Field Immune | No |
| Chip Immune | No |
| IP Rating | IP68 IP69K |

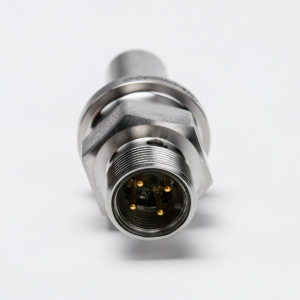

| Connection | 4-pin M12 quick-disconnect |
| Communication Port and Connection Type(s) | (1) 4-pin M12 A-coded |
| Port Protocol(s) | IO-Link Class A Device |
| Port Speed(s) | IO-Link COM2 |
| IO-Link Version | IO-Link v1.1 |
| IO-Link Function | Device identification, device diagnosis, process data, output function, timer and counter |
| Additional Information | Purchase cable separately |
