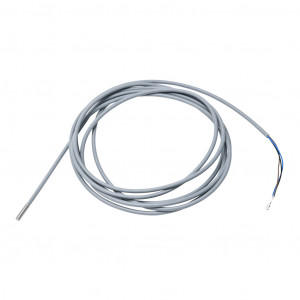

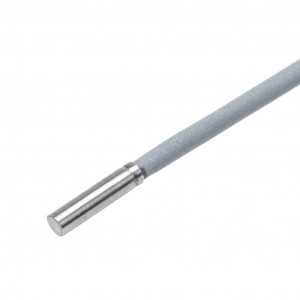

CONTRINEX INDUCTIVE PROXIMITY SENSOR, TU
$221.00USD
Precio no incluye IVACONTRINEX INDUCTIVE PROXIMITY SENSOR, TU
Marca: CONTRINEXModelo: DW-AD-621-03E-961
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$221.00USD
Atributos del producto
| Brand | Contrinex |
|---|---|
| Item | Proximity sensor |
| Sensor Type | Inductive |
| Application | High pressure hydraulic |
| Shape | Tubular |
| Housing Size | 3mm diameter x 12mm body |
| Housing Material | 304 stainless steel |
|---|---|
| Barrel Type | Smooth |
| Sensing Method | Standard sensing |
| Adjustable | No |
| Number of Wires | 3 |
| Switching Output | NPN |
| Operation Mode | N.O. |
| Sensing Distance | 0.8mm |
| Mounting Type | Flush |
| IO-Link Compatible | No |
| Switching Frequency | 8000 Hz |
| Operating Voltage | 10-30 VDC |
| Operating Temperature | -25 to 70c |
| Operating Pressure | 2900 psi (200 bar) |
| Weld Field Immune | No |
| Chip Immune | No |
| IP Rating | IP68 IP69K |
| Connection | Pigtail |
| Conductor Size | 30 AWG |
| Cable Length | 6.5ft/2m |
| Jacket Material | PUR |
