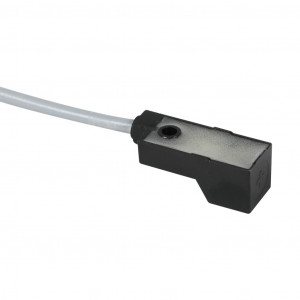

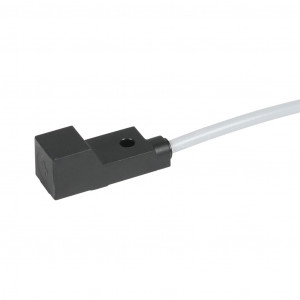

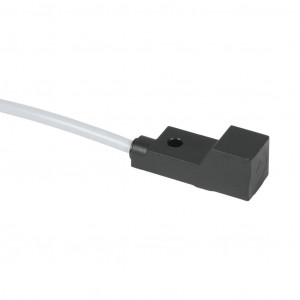

CONTRINEX INDUCTIVE PROXIMITY SENSOR, RE
$30.00USD
Precio no incluye IVACONTRINEX INDUCTIVE PROXIMITY SENSOR, RE
Marca: CONTRINEXModelo: DW-AD-613-C12P-1523
Viernes, 29 de Noviembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Martes, 03 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$30.00USD
Atributos del producto
| Brand | Contrinex |
|---|---|
| Item | Proximity sensor |
| Sensor Type | Inductive |
| Application | Standard duty and small space |
| Shape | Rectangular |
| Housing Size | 12 x 27 x 12mm body |
| Housing Material | Polycarbonate |
|---|---|
| Sensing Face | Front sensing |
| Sensing Method | Standard sensing |
| Adjustable | No |
| Number of Wires | 3 |
| Switching Output | PNP |
| Operation Mode | N.O. output |
| Sensing Distance | 4mm |
| Mounting Type | Non-flush |
| IO-Link Compatible | Yes |
| Switching Frequency | 2000 Hz |
| Operating Voltage | 10-30 VDC |
| Operating Temperature | -25 to 70 deg C |
| Weld Field Immune | No |
| Chip Immune | No |
| IP Rating | IP67 |
| Connection | Pigtail |
| Communication Port and Connection Type(s) | (1) 3-wire pigtail port(s) |
| Port Protocol(s) | IO-Link Class A Device |
| Port Speed(s) | IO-Link COM2 |
| IO-Link Version | IO-Link v1.0 |
| Standard I/O Mode Supported | Yes |
| Conductor Size | 26 AWG |
| Cable Length | 6.5ft/2m |
| Jacket Material | PVC |
| Includes | Mounting hardware |
