[2% off $341.00 ] DIRECTLOGIC DL05 PLC, 120-240 VAC REQUIR
$334.18USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

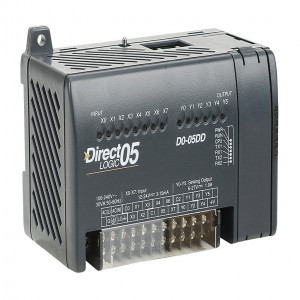

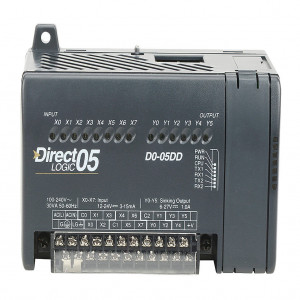

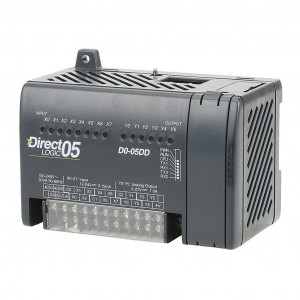

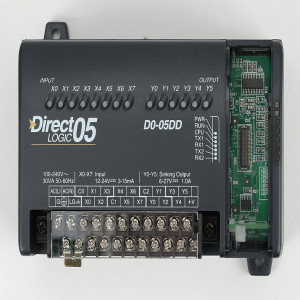

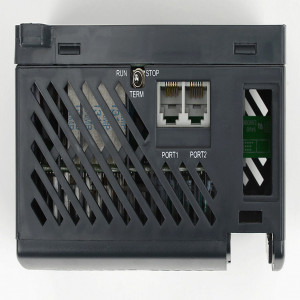

DIRECTLOGIC DL05 PLC, 120-240 VAC REQUIRED, SERIAL PORTS, DISCRETE INPUT: 8-POINT, DC, DISCRETE OUTPUT: 6-POINT, SINKING.
Fecha Entrega:
Precio (no incluye IVA):
$334.18USD
Atributos del producto
| Brand | DirectLOGIC |
|---|---|
| Item | PLC |
| Series | DL05 |
| Total Memory | 6k words |
| Ladder Memory | 2k words |
| User Data Memory | 4k words |
| Programming Language | Ladder |
|---|---|
| Programming Software | DirectSOFT programming software v4.0 or later |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Real Time Clock/Calendar | No |
| Retentive Memory | No |
| Battery Backup | No |
| Maximum Expansion Modules Allowed | 1 |
| External Power Requirement | 120-240 VAC |
| Number of Discrete Input Points | 8 |
| Nominal Input Voltage | 12-24 VDC |
| Voltage Type | DC |
| Discrete Input Type | Sinking/sourcing |
| Number of Isolated Discrete Input Commons | 2 |
| Number of Points per Discrete Input Common | 4 |
| Frequency Response | 5 kHz |
| Number of Discrete Output Points | 6 |
| Nominal Output Voltage | 12-24 VDC |
| Discrete Output Type | Sinking |
| Load Current | 1A/point |
| Number of Isolated Discrete Output Commons | 2 |
| Number of Points per Discrete Output Common | 3 |
| Maximum Switching Frequency | 7 kHz |
| Maximum Number of PID Loops | 4 |
| Number of High-Speed Capable Input Points | 3 |
| High-Speed Counter(s) |
|
| Interrupt(s) |
|
| Number of High-Speed Capable Output Points | 2 |
| Output Pulse Mode(s) |
|
| Axis Profile(s) |
|
| DataSheet | https |
