CTL500

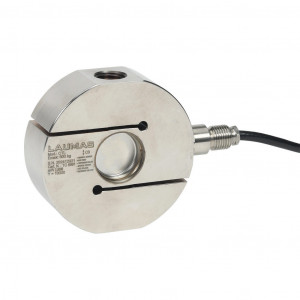

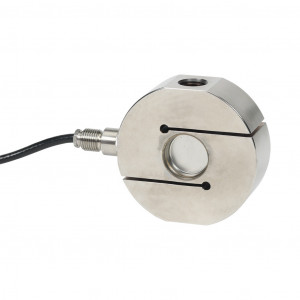

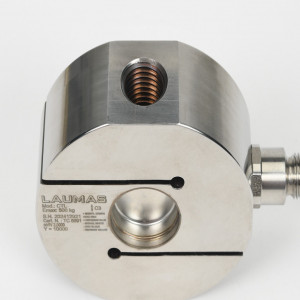

LAUMAS TENSION AND COMPRESSION LOAD CELL

$391.00USD

Precio no incluye IVA

LAUMAS TENSION AND COMPRESSION LOAD CELL, 1102 LB/500 KG, +/- 0.02% OF FULL SCALE ACCURACY, VOLTAGE SIGNAL RANGE(S) OF 2 MV/V, 3-15 VDC, STAINLESS STEEL, IP68, 32.8FT/10M INTEGRAL 6-WIRE SHIELDED CABLE.

Marca: LAUMAS
Modelo: CTL500

Documentos:

CTL500 2D Drawing

Product Line Brochure

Manufacturer Installation Guidelines

Product Cut Sheet

CTL500 STP 3D Model

Technical Specifications

Manufacturer Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Entrega estimada:

Debug deliveryArray[1]: "Disponible"

Debug trim(deliveryArray[1]): "Disponible"

Jueves, 24 De Julio De 2025

* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.

											*** Condición ejecutada: Entró en else ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$391.00USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	Laumas
Item	Load cell
Sensor Type	Tension and compression
Application	Force measurement, suspended hoppers and conveyor belts
Load Rating	1102 lb/500 kg
Accuracy	+/- 0.02\% of full scale

Output Voltage Signal Range	2 mV/V
Operating Voltage	3-15 VDC
Operating Temperature	-30 to 90 deg C
Material	Stainless steel
IP Rating	IP68
Mounting Hole Size	(2) M16 threaded
Electrical Connection	32.8ft/10m integral 6-wire shielded cable
