CPS2B1-480-24

[4% off $410.00 ] LUTZE CPS ULTRA SERIES SWITCHING POWER S

$393.6USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

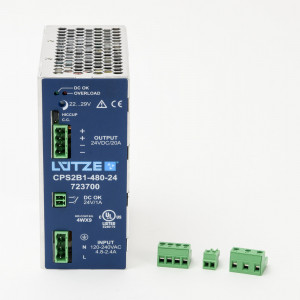

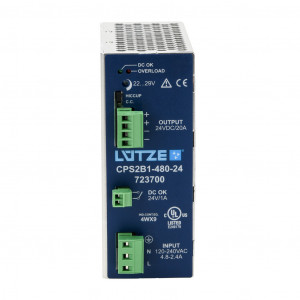

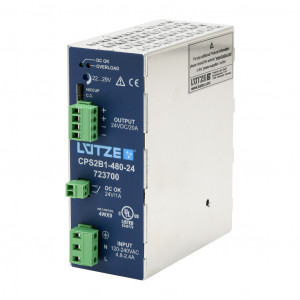

LUTZE CPS ULTRA SERIES SWITCHING POWER SUPPLY, 24 VDC @ 20A/480W, 120/240 VAC NOMINAL INPUT, 1-PHASE, ENCLOSED, ALUMINUM HOUSING, 35MM DIN RAIL MOUNT, SCREW TERMINALS.

Modelo: CPS2B1-480-24

Documentos:

CPS2B1-480-24 2D Drawing

Product Line Brochure

Product Cut Sheet

Power Supply Insert

CPS2B1-480-24 STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=CPS2B1-480-24"

Debug Cantidad: "18"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 08 de Diciembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "472"

Debug idProveedor: "106"

Lunes, 08 de Diciembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$393.6USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	LUTZE
Item	Power supply
Series	CPS Ultra
Power Supply Type	Switching
Efficiency	93\% @240VAC
Output Configuration	Single output

Output	120/240 VAC @ 20A/480W
Output Voltage Range	22-29 VDC
Input voltage range	90-264 VAC/110-345 VDC
Input Voltage Selection Type	Automatic
Number of Input Phases	1
Protection Type(s)	overvoltage overcurrent short circuit over-temperature
Remote On/Off	No
Enclosure Type	Enclosed
Housing Material	Aluminum
IP Rating	IP20
Mounting	35mm DIN rail
Connector Type	Screw terminals
Integrated UPS Battery Control	No
Operating Temperature	-40 to +70 deg C
Power Boost	150\% for 5s
