[14% off $865.00 ] NITRA PNEUMATIC ETHERNET/IP PROTOCOL MOD
$743.9USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

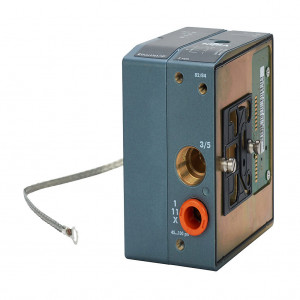

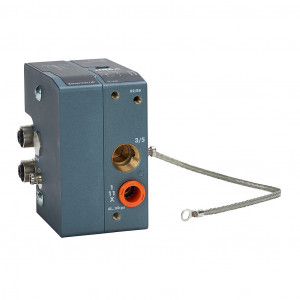

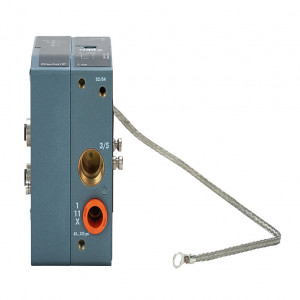

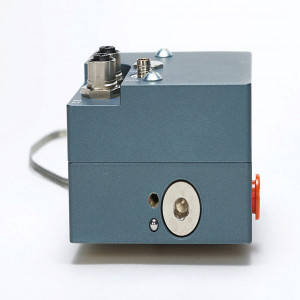

NITRA PNEUMATIC ETHERNET/IP PROTOCOL MODULAR PLATE, LEFT SUPPLY/EXHAUST END, CV=12.4, 3/8IN PUSH-TO-CONNECT TUBING INLET(S), 3/8IN FEMALE NPT EXHAUST(S), ANODIZED ALUMINUM BODY, IP65.
Modelo: CMV-E1X-4X
Este producto incluye
Envío gratis
* Aplican restricciones
Jueves, 28 de Noviembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 02 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$743.9USD
Atributos del producto
| Brand | NITRA |
|---|---|
| Item | EtherNet/IP protocol modular plate |
| Working Fluid | Pneumatic |
| Pneumatic Function | Left supply/exhaust end |
| Flow Coefficient | 12.4 |
| Inlet Port | 3/8in push-to-connect tubing |
| Exhaust Port | 3/8in female NPT |
|---|---|
| Body Material | Anodized aluminum |
| IP Rating | IP65 |

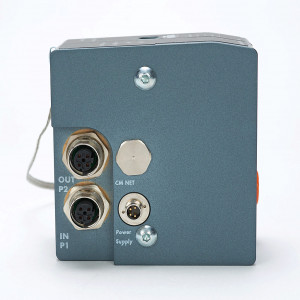

| Electrical Connection | (2) 5-pin M12 and (1) 4-pin M8 quick-disconnect |
| For Use With | CMV series solenoid valves |
| Requires | 4-pin M8 power cable |
