[14% off $214.00 ] NITRA SOLENOID VALVE, COMPACT MODULAR, 5
$184.04USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

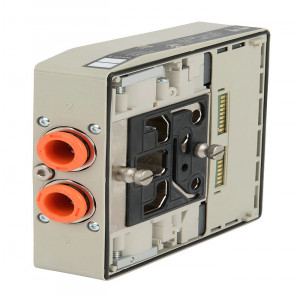

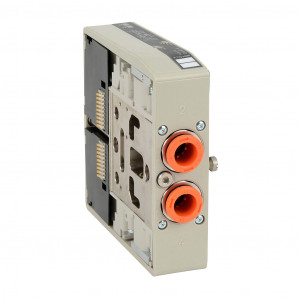

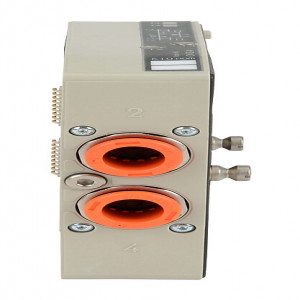

NITRA SOLENOID VALVE, COMPACT MODULAR, 5-WAY, 2-POSITION, DOUBLE SOLENOID, REINFORCED TECHNOPOLYMER BODY, IP65, LOCKING MANUAL OVERRIDE, (2) 3/8IN PUSH-TO-CONNECT TUBING OUTLET(S), CV=1.2, 24 VDC.
Modelo: CMV-B2L-4A
Viernes, 29 de Noviembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Martes, 03 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$184.04USD
Atributos del producto
| Brand | NITRA |
|---|---|
| Item | Valve |
| Working Fluid | Pneumatic |
| Valve Type | Solenoid directional control |
| Port Quantity | 5-way |
| Number Of Positions | 2 |
| Action | Double solenoid |
|---|---|
| Body Material | Reinforced technopolymer |
| IP Rating | IP65 |
| Outlet Port | (2) 3/8in push-to-connect tubing |
| Manual Override Type | Locking |
| Flow Coefficient | 1.2 |
| Operating Voltage | 24 VDC |
| Indicating Type | LED indication |
| Form Factor | Compact modular |
| Requires | One CMV series left end plate and right end plate for any combination of one to sixteen solenoids |
| Additional Information | Valve uses two of the available 16 wiring positions on the inlet plate |
