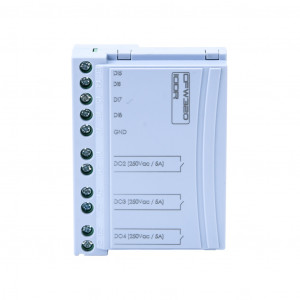

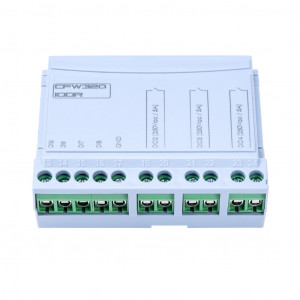

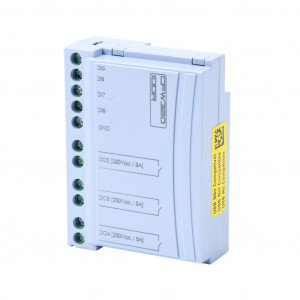

WEG ELECTRIC CFW320 SERIES PULSE COMBO M
$68.00USD
Precio no incluye IVAWEG ELECTRIC CFW320 SERIES PULSE COMBO MODULE, 3 KHZ MAXIMUM SWITCHING FREQUENCY, 3 HIGH-SPEED INPUT POINT(S), SINKING, SINGLE-ENDED ENCODER INPUT(S), 3 HIGH-SPEED OUTPUT POINT(S), SOURCING, SINGLE-ENDED OUTPUT(S).
Marca: WEG ELECTRICModelo: CFW320-IODR
Entrega estimada:
Martes, 22 De Abril De 2025
* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$68.00USD
Atributos del producto
| Brand | WEG Electric |
|---|---|
| Item | Combo module |
| I/O Module Type | Discrete |
| Series | CFW320 |
| Number of Input Points | 4 |
| Nominal Input Voltage | 24 VDC |
| Discrete Input Type | Sinking/sourcing |
|---|---|
| Number of Non-Isolated Discrete Input Commons | 2 |
| Number of Points per Discrete Input Common | 2 |
| Number of Output Points | 3 |
| Nominal Output Voltage | 250 VAC |
| Discrete Output Type | Relay |
| Relay Configuration | (3) Form A (SPST) relays |
| Number of Isolated Discrete Output Commons | 3 |
| Number of Points per Discrete Output Common | 1 |
| Load Current | 5A/point |
| For Use With | WEG CFW320 series AC drives |
