WEG ELECTRIC CFW320 SERIES RELAY/ANALOG
$73.00USD

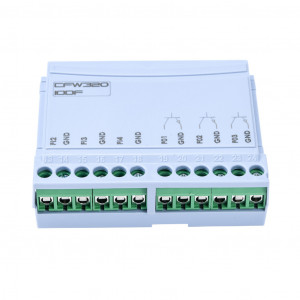

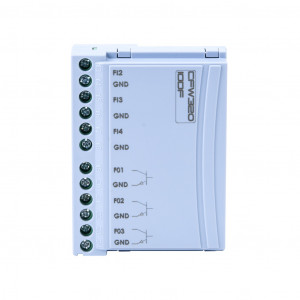

Precio no incluye IVAWEG ELECTRIC CFW320 SERIES RELAY/ANALOG COMBO MODULE, ANALOG INPUT: 1-CHANNEL, CURRENT/VOLTAGE, ANALOG OUTPUT: 1-CHANNEL, CURRENT/VOLTAGE, DISCRETE OUTPUT: 3-POINT, RELAY, (3) FORM A (SPST) RELAYS. FOR USE WITH WEG CFW320 SERIES AC DRIVES.
Marca: WEG ELECTRICModelo: CFW320-IODF
Entrega estimada:
Martes, 22 De Abril De 2025
* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$73.00USD
Atributos del producto
| Brand | WEG Electric |
|---|---|
| Item | Combo module |
| I/O Module Type | Pulse |
| Series | CFW320 |
| Maximum Switching Frequency | 3 kHz |
| Number of High-Speed Capable Input Points | 3 |
| Nominal Input Voltage | 24 VDC |
|---|---|
| Discrete Input Type | Sinking |
| Number of Non-Isolated Input Commons | 1 |
| Number Of Input Channels | 3 |
| Encoder Input Type |
|
| Number of High-Speed Capable Output Points | 3 |
| Nominal Output Voltage | 24 VDC |
| Discrete Output Type | Sourcing |
| Number of Non-Isolated Output Commons | 1 |
| Number of Isolated Output Commons | 3 |
| Load Current | 20 mA/point |
| Number Of Output Channels | 3 |
| Pulse Output Channel Type |
|
| For Use With | WEG CFW320 series AC drives |
| Requires | WEG CFW320 series communication module for WPS software module configuration |
| Programming Software | WEG WPS programming software version 3.1 or later |
