CFW320-IOAR

[3% off $107.00 ] WEG ELECTRIC CFW320 SERIES ENCODER ANALO

$103.79USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

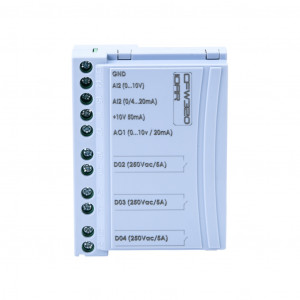

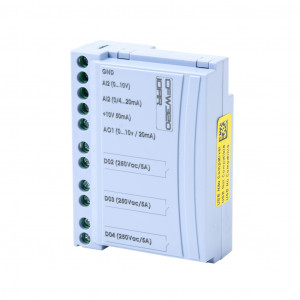

WEG ELECTRIC CFW320 SERIES ENCODER ANALOG COMBO MODULE, 400 KHZ MAXIMUM SWITCHING FREQUENCY, 1-CHANNEL QUADRATURE ENCODER INPUT, ANALOG INPUT: 1-CHANNEL, ANALOG OUTPUT: 2-CHANNEL. FOR USE WITH WEG CFW320 SERIES AC DRIVES.

Modelo: CFW320-IOAR

Documentos:

CFW320-IOAR 2D Drawing

Product Line Brochure

Drive User Manual

Drive User Manual Addendum

Product Cut Sheet

Combo Module Quick Start Guide

CFW320-IOAR STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=CFW320-IOAR"

Debug Cantidad: "10"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 08 de Diciembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "478"

Debug idProveedor: "106"

Lunes, 08 de Diciembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$103.79USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	WEG Electric
Item	Combo module
I/O Module Type	Relay/analog
Series	CFW320
Number of Analog Input Channels	1
Analog Input Signal Type	Current/voltage

Input Resolution	10-bit
Input Current Signal Range	0-20 mA and 4-20 mA
Input Voltage Signal Range	0-10 VDC
Number of Analog Output Channels	1
Analog Output Signal Type	Current/voltage
Output Resolution	12-bit
Output Current Signal Range	0-20 mA and 4-20 mA
Output Voltage Signal Range	0-10 VDC
Number of Discrete Output Points	3
Nominal Output Voltage	250 VAC
Discrete Output Type	Relay
Relay Configuration	(3) Form A (SPST) relays
Number of Isolated Discrete Output Commons	3
Number of Points per Discrete Output Common	1
Load Current	5A/point
For Use With	WEG CFW320 series AC drives
