[2% off $350.00 ] CLICK ETHERNET ANALOG PLC, 24 VDC REQUIR
$343USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

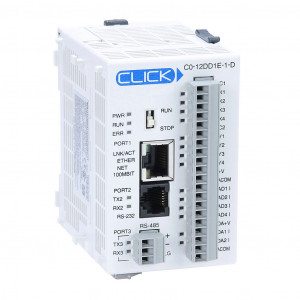

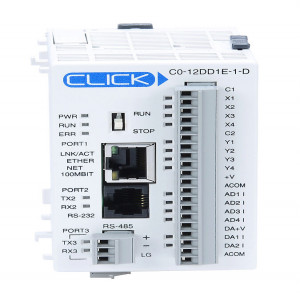

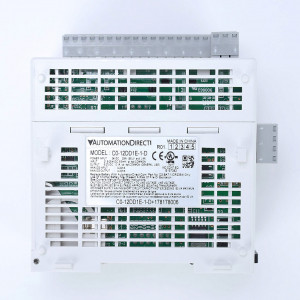

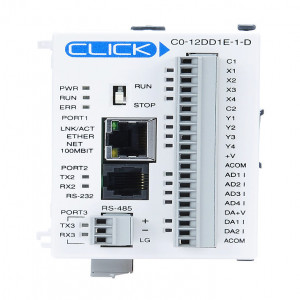

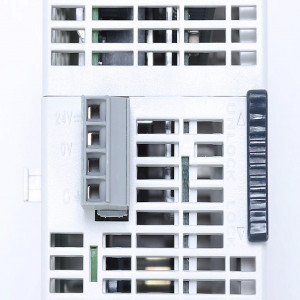

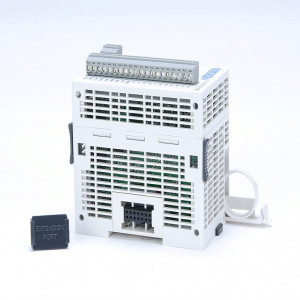

CLICK ETHERNET ANALOG PLC, 24 VDC REQUIRED, ETHERNET AND SERIAL PORTS, DISCRETE INPUT: 4-POINT, DC, ANALOG INPUT: 4-CHANNEL, CURRENT, DISCRETE OUTPUT: 4-POINT, SINKING, ANALOG OUTPUT: 2-CHANNEL, CURRENT.
Documentos:
Fecha Entrega:
Precio (no incluye IVA):
$343USD
Atributos del producto
| Brand | CLICK |
|---|---|
| Item | PLC |
| Series | Ethernet Analog |
| Ladder Memory | 8k steps |
| User Data Memory | 16 KB |
| Programming Language | Ladder |
| Programming Software | CLICK programming software v2.20 or later and CLICK CPU firmware v2.20 or later |
|---|---|
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Real Time Clock/Calendar | Yes |
| Retentive Memory | Yes |
| Battery Backup | Yes |
| Maximum Expansion Modules Allowed | 8 |
| External Power Requirement | 24 VDC |
| Number of Discrete Input Points | 4 |
| Nominal Input Voltage | 24 VDC |
| Voltage Type | DC |
| Discrete Input Type | Sinking/sourcing |
| Number of Isolated Discrete Input Commons | 1 |
| Number of Points per Discrete Input Common | 4 |
| Number of Discrete Output Points | 4 |
| Nominal Output Voltage | 5-27 VDC |
| Discrete Output Type | Sinking |
| Load Current | 0.1A/point |
| Number of Isolated Discrete Output Commons | 1 |
| Number of Points per Discrete Output Common | 4 |
| Number of Analog Input Channels | 4 |
| Analog Input Signal Type | Current |
| Number of Non-Isolated Analog Input Commons | 1 |
| Number of Points per Analog Input Common | 4 |
| Input Resolution | 12-bit |
| Input Current Signal Range | 0-20 mA |
| Number of Analog Output Channels | 2 |
| Analog Output Signal Type | Current |
| Number of Non-Isolated Analog Output Commons | 1 |
| Number of Points per Analog Output Common | 2 |
| Output Resolution | 12-bit |
| Output Current Signal Range | 4-20 mA |
| Maximum Number of PID Loops | 8 |
| Number of High-Speed Capable Input Points | 4 |
| High-Speed Counter(s) |
|
| Interval Measurement |
|
| Duration Measurement |
|
| Frequency Measurement |
|
| Interrupt(s) |
|
| Table-Driven Input(s) |
|
| Includes | Removable terminal block |
| Additional Information | Purchase D2-BAT-1 backup battery separately |
| DataSheet | https |
