[5% off $362.00 ] BRX PULSE COMBO MODULE, 2 MHZ MAXIMUM SW



$343.9USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

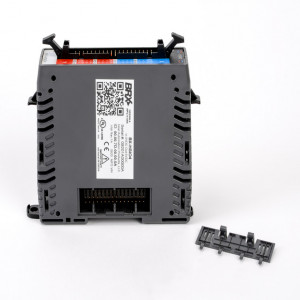

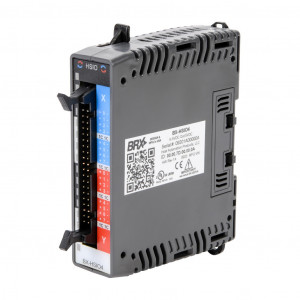

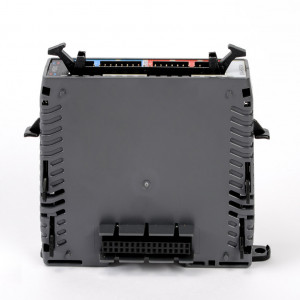

BRX PULSE COMBO MODULE, 2 MHZ MAXIMUM SWITCHING FREQUENCY, 8 HIGH-SPEED INPUT POINT(S), SINKING/SOURCING/TTL, DIFFERENTIAL AND SINGLE-ENDED ENCODER INPUT(S), 8 HIGH-SPEED OUTPUT POINT(S), SINKING/SOURCING/TTL, DIFFERENTIAL AND SINGLE-ENDED OUTPUT(S).

Marca: BRX
Modelo: BX-HSIO4

Compartir

Documentos:

BX-HSIO4 STP 2D Drawing
Product Line Brochure
Category 2D Drawings
Do-more BRX PLC User Manual
PLC Statement of Direction
Product Cut Sheet
Pulse Combo Module Insert
BX-HSIO4 STP 3D Model
Combo Module Tech Specs
ENVIO GRATIS en compras mayores a $650.00 USD.
1 AÑO de Garantía SDI
Disponible
Viernes, 29 de Noviembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.

Martes, 03 De Diciembre De 2024

*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.

Precio (no incluye IVA):

$343.9USD

Cantidad:
Atributos Arriba

Atributos del producto

Brand BRX
Item Combo module
I/O Module Type Pulse
Maximum Switching Frequency 2 MHz
Number of High-Speed Capable Input Points 8
Nominal Input Voltage 2-5 VDC
Ver más
Discrete Input Type Sinking/sourcing/TTL
Number of Non-Isolated Input Commons 2
Number of Isolated Input Commons 2
Number Of Input Channels 8
Encoder Input Type
  • receiver (differential)
  • push-pull (totem)
Number of High-Speed Capable Output Points 8
Nominal Output Voltage 2-5 VDC
Discrete Output Type Sinking/sourcing/TTL
Number of Non-Isolated Output Commons 2
Number of Isolated Output Commons 2
Load Current 20 mA/point
Number Of Output Channels 8
Pulse Output Channel Type
  • differential, NPN open collector, PNP open collector and push-pull (totem)
High-Speed Counter(s)
  • up to (4) up counters
  • up to (4) down counters
  • up to (4) up/down counters
  • up to (4) pulse/direction (bi-directional) counters
  • up to (4) quadrature (A and B) counters
  • up to (4) quadrature (A and B with Z) counters
Position Scaling
  • up to (4) up counters
  • up to (4) down counters
  • up to (4) up/down counters
  • up to (4) pulse/direction (bi-directional) counters
  • up to (4) quadrature (A and B) counters
  • up to (4) quadrature (A and B with Z) counters
Interval Measurement
  • up to (4) single input (edge) timers
  • up to (4) dual input (dual edge) timers
Duration Measurement
  • up to (4) single input (edge) timers
Frequency Measurement
  • up to (4) single input up counters
  • up to (4) single input down counters
  • up to (4) pulse/direction (bi-directional) counters
  • up to (4) quadrature input (A and B) counters
  • up to (4) quadrature (A and B with Z) counters
  • up to (4) edge timers interval scaling
  • up to (4) dual edge timers interval scaling
Interrupt(s)
  • up to (4) input interrupts
  • up to (4) timer interrupts
  • up to (4) match register interrupts
Table-Driven Input(s)
  • up to (4) programmable limit switches
  • up to (4) preset tables
Output Pulse Mode(s)
  • up to (4) virtual axes
  • up to (3) PTO linear step/direction outputs
  • up to (3) PTO rotary clockwise/counter-clockwise (CW/CCW) outputs
  • up to (3) PTO quadrature (A and B) outputs
  • up to (4) PWM pulse width modulation outputs
Axis Profile(s)
  • relative/absolute positioning
  • velocity mode
  • trapezoid
  • jerk
  • registration
  • homing
  • jogging
  • electronic gearing
  • camming
  • linear mode
  • rotary mode
  • motion sequence
Requires ZIPLink connector modules and pre-wired cables
Programming Software Do-more Designer programming software v2.8 or later
