[2% off $781.00 ] BRX DO-MORE PLC, 120-240 VAC REQUIRED, E
$765.38USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

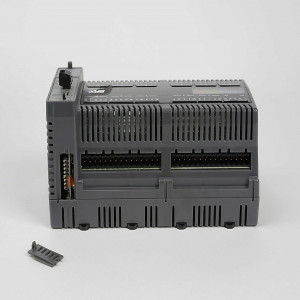

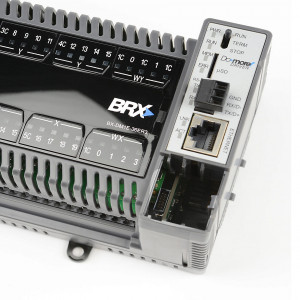

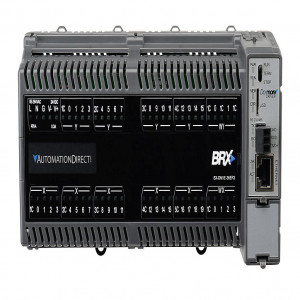

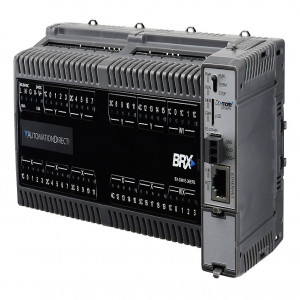

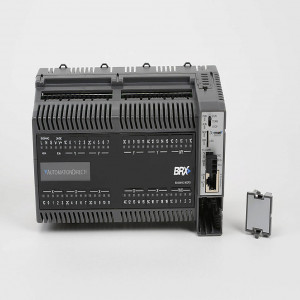

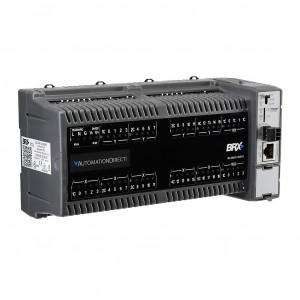

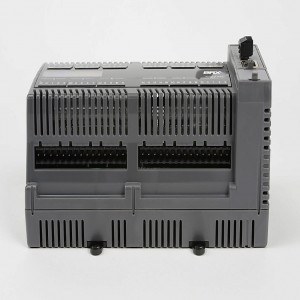

BRX DO-MORE PLC, 120-240 VAC REQUIRED, ETHERNET AND SERIAL PORTS, MICROSD CARD SLOT, DISCRETE INPUT: 20-POINT, AC/DC, ANALOG INPUT: 4-CHANNEL, CURRENT/VOLTAGE, DISCRETE OUTPUT: 16-POINT, RELAY, ANALOG OUTPUT: 2-CHANNEL, CURRENT/VOLTAGE.
Este producto incluye
Envío gratis
* Aplican restricciones
Fecha Entrega:
Precio (no incluye IVA):
$765.38USD
Atributos del producto
| Brand | BRX Do-more |
|---|---|
| Item | PLC |
| Total Memory | 192k words |
| Ladder Memory | 64k words |
| User Data Memory | 128k words |
| Removable Media Type | MicroSD card slot |
| Programming Language | Ladder |
|---|---|
| Programming Software | Do-more Designer programming software v2.0 or later |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Real Time Clock/Calendar | Yes |
| Retentive Memory | Yes |
| Battery Backup | Yes |
| Maximum Expansion Modules Allowed | 8 |
| External Power Requirement | 120-240 VAC |
| Number of Discrete Input Points | 20 |
| Nominal Input Voltage | 12-24 VAC/VDC |
| Voltage Type | AC/DC |
| Discrete Input Type | Sinking/sourcing |
| Number of Isolated Discrete Input Commons | 5 |
| Number of Points per Discrete Input Common | 4 |
| Frequency Response | 250 kHz |
| Number of Discrete Output Points | 16 |
| Nominal Output Voltage | 12-48 VDC/24-240 VAC |
| Discrete Output Type | Relay |
| Relay Type | (16) Form A (SPST) relays |
| Load Current | 2A/point |
| Number of Isolated Discrete Output Commons | 4 |
| Number of Points per Discrete Output Common | 4 |
| Number of Analog Input Channels | 4 |
| Analog Input Signal Type | Current/voltage |
| Number of Non-Isolated Analog Input Commons | 1 |
| Number of Points per Analog Input Common | 4 |
| Input Resolution | 16-bit |
| Input Current Signal Range | 4-20 mA, +/- 20 mA |
| Input Voltage Signal Range | 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC |
| Number of Analog Output Channels | 2 |
| Analog Output Signal Type | Current/voltage |
| Number of Non-Isolated Analog Output Commons | 3 |
| Number of Points per Analog Output Common | 2 |
| Output Resolution | 16-bit |
| Output Current Signal Range | 4-20 mA and +/- 20 mA |
| Output Voltage Signal Range | 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC |
| Maximum Number of PID Loops | 100+ (configurable to memory limit) |
| Number of High-Speed Capable Input Points | 10 |
| High-Speed Counter(s) |
|
| Position Scaling |
|
| Interval Measurement |
|
| Duration Measurement |
|
| Frequency Measurement |
|
| Interrupt(s) |
|
| Includes | BX-RTB03S terminal block and D0-MC-BAT battery |
| Requires | BX-RTB36 or BX-RTB36-1 terminal block kit or ZIPLink pre-wired cables |
| Dangerous Goods |
|
| DataSheet | https |
