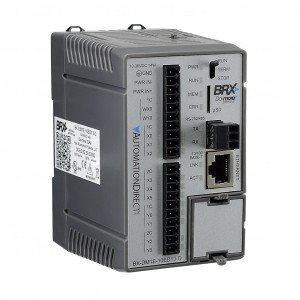

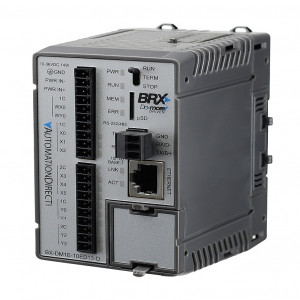

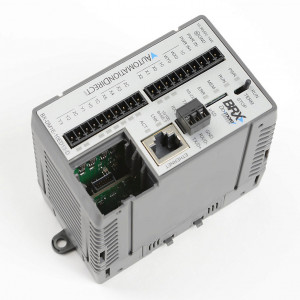

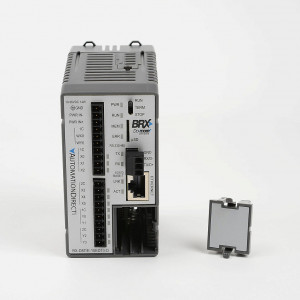

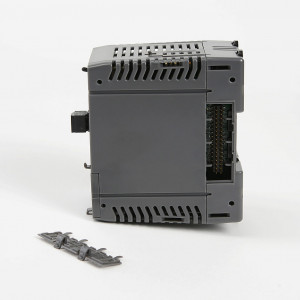

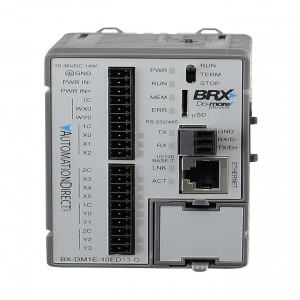

[5% off $534.00 ] BRX DO-MORE PLC, 12-24 VDC REQUIRED, ETH



$507.3USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA
BRX DO-MORE PLC, 12-24 VDC REQUIRED, ETHERNET AND SERIAL PORTS, MICROSD CARD SLOT, DISCRETE INPUT: 6-POINT, AC/DC, ANALOG INPUT: 1-CHANNEL, CURRENT/VOLTAGE, DISCRETE OUTPUT: 4-POINT, SINKING, ANALOG OUTPUT: 1-CHANNEL, CURRENT/VOLTAGE.

Marca: BRX DO-MORE
Modelo: BX-DM1E-10ED13-D

Compartir

Documentos:

BX-DM1E-10ED13-D 2D Drawing
Product Line Brochure
Category 2D Drawings
Do-More Online Help File
Do-more BRX PLC User Manual
PLC Statement of Direction
Product Cut Sheet
BX-DM1E-10ED13-D Product Insert
Do-More Programming Software
BX-DM1E-10ED13-D STP 3D Model
PLC Tech Specs
ENVIO GRATIS en compras mayores a $650.00 USD.
1 AÑO de Garantía SDI
Disponible
Miércoles, 18 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.

Viernes, 20 De Diciembre De 2024

*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.

Precio (no incluye IVA):

$507.3USD

Cantidad:
Atributos Arriba

Atributos del producto

Brand BRX Do-more
Item PLC
Total Memory 192k words
Ladder Memory 64k words
User Data Memory 128k words
Removable Media Type MicroSD card slot
Ver más
Programming Language Ladder
Programming Software Do-more Designer programming software v2.0 or later
Communication Port and Connection Type(s)
  • (1) Ethernet 10/100Base-T (RJ45)
  • (1) RS-232/RS-485 (3-pin terminal)
Port Protocol(s)
  • Do-more protocol
  • Modbus RTU Master/Slave
  • Modbus TCP
  • ASCII In/out
  • TCP/IP
  • UDP/IP
  • EtherNet/IP explicit messaging scanner/adapter
  • Ethernet remote I/O
  • K-sequence Slave
  • programming and monitoring
Port Speed(s)
  • 10/100 Mbps
  • up to 115.2k baud
Real Time Clock/Calendar Yes
Retentive Memory Yes
Battery Backup Yes
Maximum Expansion Modules Allowed 2
External Power Requirement 12-24 VDC
Number of Discrete Input Points 6
Nominal Input Voltage 12-24 VAC/VDC
Voltage Type AC/DC
Discrete Input Type Sinking/sourcing
Number of Isolated Discrete Input Commons 2
Number of Points per Discrete Input Common 3
Frequency Response 250 kHz
Number of Discrete Output Points 4
Nominal Output Voltage 12-24 VDC
Discrete Output Type Sinking
Load Current 0.5A/point
Number of Isolated Discrete Output Commons 2
Number of Points per Discrete Output Common 2
Maximum Switching Frequency 250 kHz
Number of Analog Input Channels 1
Analog Input Signal Type Current/voltage
Number of Non-Isolated Analog Input Commons 1
Number of Points per Analog Input Common 1
Input Resolution 16-bit
Input Current Signal Range 4-20 mA, +/- 20 mA
Input Voltage Signal Range 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC
Number of Analog Output Channels 1
Analog Output Signal Type Current/voltage
Number of Non-Isolated Analog Output Commons 1
Number of Points per Analog Output Common 1
Output Resolution 16-bit
Output Current Signal Range 4-20 mA and +/- 20 mA
Output Voltage Signal Range 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC
Maximum Number of PID Loops 100+ (configurable to memory limit)
Number of High-Speed Capable Input Points 6
High-Speed Counter(s)
  • up to (3) up counters
  • up to (3) down counters
  • up to (3) up/down counters
  • up to (3) pulse/direction (bi-directional) counters
  • up to (3) quadrature (A and B) counters
  • up to (3) quadrature (A and B with Z) counters
Position Scaling
  • up to (3) up counters
  • up to (3) down counters
  • up to (3) up/down counters
  • up to (3) pulse/direction (bi-directional) counters
  • up to (3) quadrature (A and B) counters
  • up to (3) quadrature (A and B with Z) counters
Interval Measurement
  • up to (3) single input (edge) timers
  • up to (3) dual input (dual edge) timers
Duration Measurement
  • up to (3) single input (edge) timers
Frequency Measurement
  • up to (3) single input up counters
  • up to (3) single input down counters
  • up to (3) pulse/direction (bi-directional) counters
  • up to (3) quadrature input (A and B) counters
  • up to (3) quadrature (A and B with Z) counters
  • up to (3) edge timers interval scaling
  • up to (3) dual edge timers interval scaling
Interrupt(s)
  • up to (4) input interrupts
  • up to (4) timer interrupts
  • up to (4) match register interrupts
Table-Driven Input(s)
  • up to (4) programmable limit switches
  • up to (4) preset tables
Number of High-Speed Capable Output Points 2
Output Pulse Mode(s)
  • up to (4) virtual axes
  • up to (2) PTO linear step/direction outputs
  • up to (1) PTO rotary clockwise/counter-clockwise (CW/CCW) output
  • up to (1) PTO quadrature (A and B) output
  • up to (2) PWM pulse width modulation outputs
Axis Profile(s)
  • relative/absolute positioning
  • velocity mode
  • trapezoid
  • S-curve
  • electronic gearing
  • camming
  • following
  • homing
  • jogging
Includes BX-RTB03S terminal block and D0-MC-BAT battery
Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables
Dangerous Goods
  • Battery Installed
