[2% off $476.00 ] BRX ANALOG COMBO MODULE, INPUT: 4-CHANNE
$466.48USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

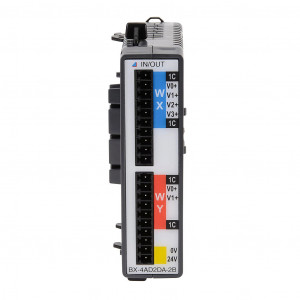

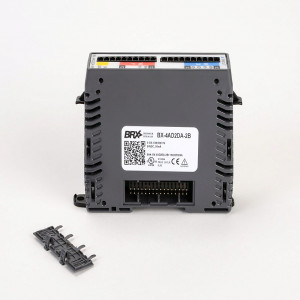

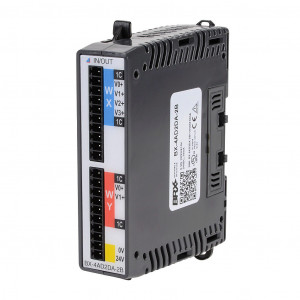

BRX ANALOG COMBO MODULE, INPUT: 4-CHANNEL, VOLTAGE, 0-5 VDC, 0-10 VDC, +/- 5 VDC AND +/- 10 VDC, OUTPUT: 2-CHANNEL, VOLTAGE, 0-5 VDC, 0-10 VDC, +/- 5 VDC AND +/- 10 VDC.
Fecha Entrega:
Precio (no incluye IVA):
$466.48USD
Atributos del producto
| Brand | BRX |
|---|---|
| Item | Combo module |
| I/O Module Type | Analog |
| Number Of Input Channels | 4 |
| Input Signal Type(s) | Voltage |
| Number of Non-Isolated Input Commons | 1 |
| Input Resolution | 16-bit |
|---|---|
| Input Voltage Signal Range | 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC |
| Number Of Output Channels | 2 |
| Output Signal Type | Voltage |
| Analog Output Type | Sinking/sourcing |
| Number of Non-Isolated Output Commons | 1 |
| Output Resolution | 16-bit |
| Output Voltage Signal Range | 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC |
| External Power Requirement | 24 VDC |
| Programming Software | Do-more Designer programming software v2.6 or later |
