BTS1M-TDTL

AUTONICS PHOTOELECTRIC SENSOR, RECTANGUL

$157.00USD

Precio no incluye IVA

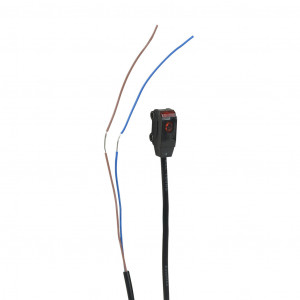

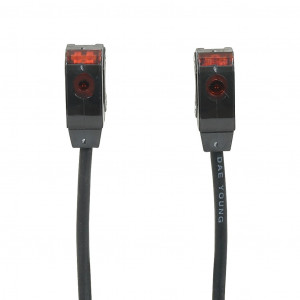

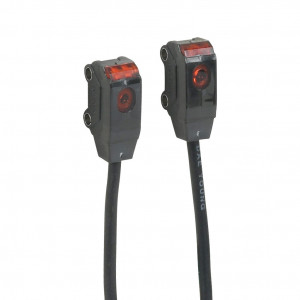

AUTONICS PHOTOELECTRIC SENSOR, RECTANGULAR, POLYBUTYLENE TEREPHTHALATE HOUSING, THROUGH-BEAM PAIR, VISIBLE RED, 0-1M SENSING DISTANCE, 10.8-26.4 VDC OPERATING VOLTAGE, LIGHT-ON, NPN, 3-WIRE, PIGTAIL.

Modelo: BTS1M-TDTL

Documentos:

BTS1M-TDTL 2D Drawing

Product Line Brochure

Installation Instructions Insert

Product Cut Sheet

BTS1M-TDTL STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=BTS1M-TDTL"

Debug Cantidad: "11"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 08 de Diciembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "578"

Debug idProveedor: "106"

Lunes, 08 de Diciembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$157.00USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	Autonics
Item	Photoelectric sensor
Shape	Rectangular
Housing Size	9.5 x 7.2 x 18.6mm
IP Rating	IP67
Application	Small space and standard duty

Housing Material	Polybutylene terephthalate
Sensing Method	Through-beam pair
Operating Voltage	10.8-26.4 VDC
Number of Wires	3
Switching Output	NPN
Sensing Distance	0-1m
Operation Mode	Light-on
Switching Frequency	1 kHz
Light Emission (NP)	Visible red
IO-Link Compatible	No
Cable Length	6.5ft/2m
Jacket Material	PVC
Connection	Pigtail
Conductor Size	28 AWG
Includes	Mounting hardware
