BTS15-LDTL

$154.00USD

Precio no incluye IVA

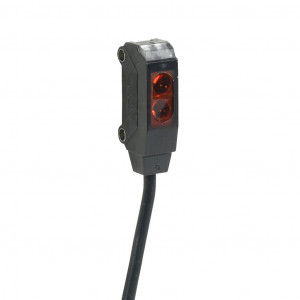

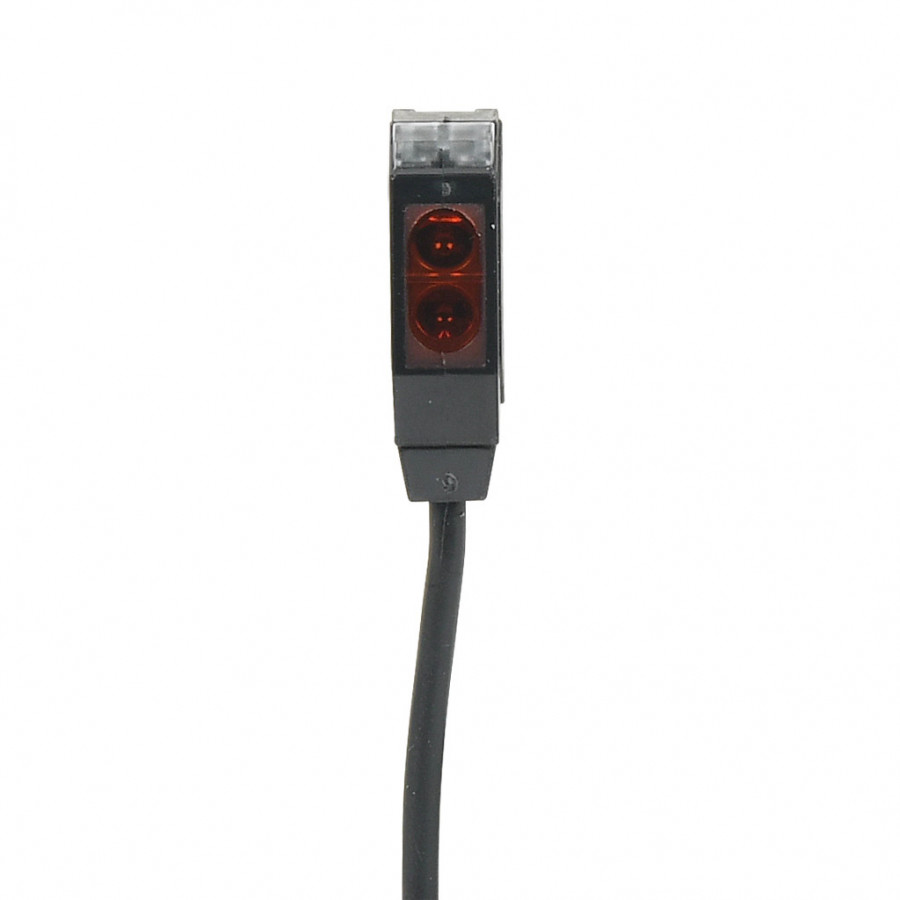

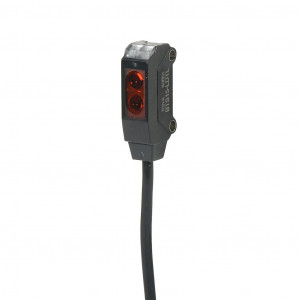

AUTONICS PHOTOELECTRIC SENSOR, RECTANGULAR, DIFFUSE, VISIBLE RED, 5-15MM SENSING DISTANCE, LIGHT-ON, NPN, 3-WIRE, PIGTAIL.

Marca: AUTONICS
Modelo: BTS15-LDTL

Documentos:

BTS15-LDTL 2D Drawing

Product Line Brochure

Product Cut Sheet

BTS15-LDTL STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Entrega estimada:

Debug deliveryArray[1]: "Disponible"

Debug trim(deliveryArray[1]): "Disponible"

Martes, 22 De Julio De 2025

* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.

											*** Condición ejecutada: Entró en else ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

Cantidad:

Atributos Arriba

Brand	Autonics
Item	Photoelectric sensor
Shape	Rectangular
Housing Size	10.8 x 7.2 x 24.6mm
IP Rating	IP67
Application	Small space and standard duty

Housing Material	Polybutylene terephthalate
Sensing Method	Diffuse
Operating Voltage	10.8-26.4 VDC
Number of Wires	3
Switching Output	NPN
Sensing Distance	5-15mm
Operation Mode	Light-on
Switching Frequency	1 kHz
Light Emission (NP)	Visible red
IO-Link Compatible	No
Cable Length	6.5ft/2m
Jacket Material	PVC
Connection	Pigtail
Conductor Size	28 AWG
Includes	Mounting hardware
