BTF15-BDTL

AUTONICS PHOTOELECTRIC SENSOR, RECTANGUL

$154.00USD

Precio no incluye IVA

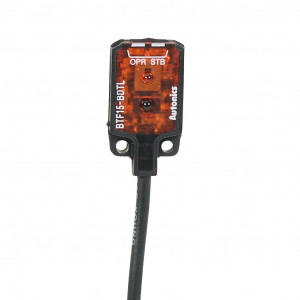

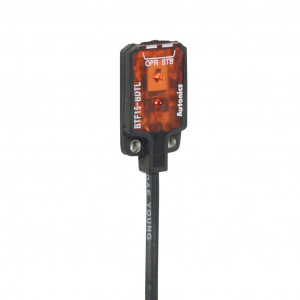

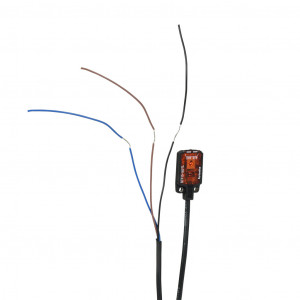

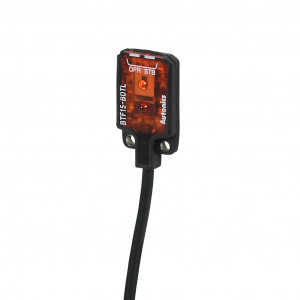

AUTONICS PHOTOELECTRIC SENSOR, RECTANGULAR, DIFFUSE WITH BACKGROUND SUPPRESSION, VISIBLE RED, 1-15MM SENSING DISTANCE, LIGHT-ON, NPN, 3-WIRE, PIGTAIL.

Marca: AUTONICS
Modelo: BTF15-BDTL

Documentos:

BTF15-BDTL 2D Drawing

Product Line Brochure

Installation Instructions Insert

Product Cut Sheet

BTF15-BDTL STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Entrega estimada:

Debug deliveryArray[1]: "Disponible"

Debug trim(deliveryArray[1]): "Disponible"

Martes, 22 De Julio De 2025

* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.

											*** Condición ejecutada: Entró en else ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$154.00USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	Autonics
Item	Photoelectric sensor
Shape	Rectangular
Housing Size	20.8 x 13 x 3.7mm
IP Rating	IP67
Application	Small space and standard duty

Housing Material	Polybutylene terephthalate
Sensing Method	Diffuse with background suppression
Operating Voltage	10.8-26.4 VDC
Number of Wires	3
Switching Output	NPN
Sensing Distance	1-15mm
Operation Mode	Light-on
Switching Frequency	1 kHz
Light Emission (NP)	Visible red
IO-Link Compatible	No
Cable Length	6.5ft/2m
Jacket Material	PVC
Connection	Pigtail
Conductor Size	28 AWG
Includes	Mounting hardware
