BPS3M-TDT

AUTONICS PHOTOELECTRIC SENSOR, RECTANGUL

$143.00USD

Precio no incluye IVA

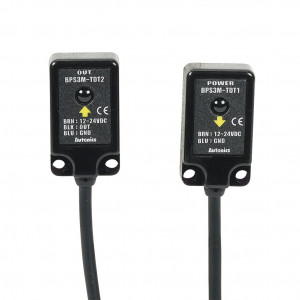

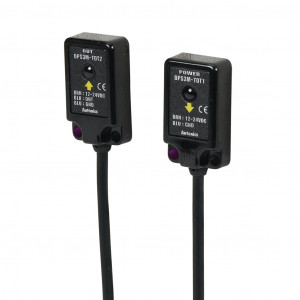

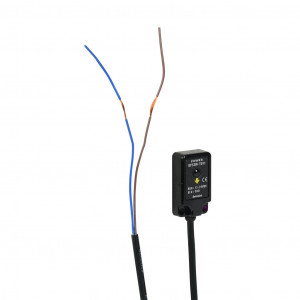

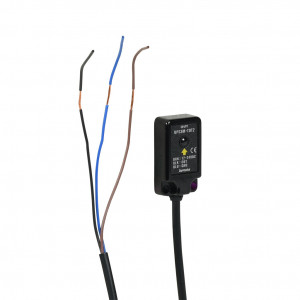

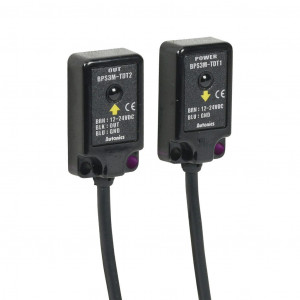

AUTONICS PHOTOELECTRIC SENSOR, RECTANGULAR, POLYCARBONATE HOUSING, THROUGH-BEAM PAIR, INFRARED, 0-3M SENSING DISTANCE, 10.8-26.4 VDC OPERATING VOLTAGE, DARK-ON, NPN, 3-WIRE, PIGTAIL.

Marca: AUTONICS
Modelo: BPS3M-TDT

Documentos:

BPS3M-TDT 2D Drawing

Product Line Brochure

Installation Instructions Insert

Product Cut Sheet

BPS3M-TDT STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Entrega estimada:

Debug deliveryArray[1]: "Disponible"

Debug trim(deliveryArray[1]): "Disponible"

Martes, 22 De Julio De 2025

* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.

											*** Condición ejecutada: Entró en else ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$143.00USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	Autonics
Item	Photoelectric sensor
Shape	Rectangular
Housing Size	28 x 16 x 7.5mm
IP Rating	IP67
Application	Small space and standard duty

Housing Material	Polycarbonate
Sensing Method	Through-beam pair
Operating Voltage	10.8-26.4 VDC
Number of Wires	3
Switching Output	NPN
Sensing Distance	0-3m
Operation Mode	Dark-on
Switching Frequency	1 kHz
Light Emission (NP)	Infrared
IO-Link Compatible	No
Cable Length	6.5ft/2m
Jacket Material	PVC
Connection	Pigtail
Conductor Size	24 AWG
Includes	Mounting hardware
